Detail Information
Place of Origin:
CHINA
Features:
High Infrared Responsiveness, Repeatability And Reliability
Product Name:
Temperature Sensor
Material:
Aluminum
Operating Temperature:
-20~100℃
Application:
Temperature Measurement
Color:
Silver
Packaging Details:
carton packing
Description

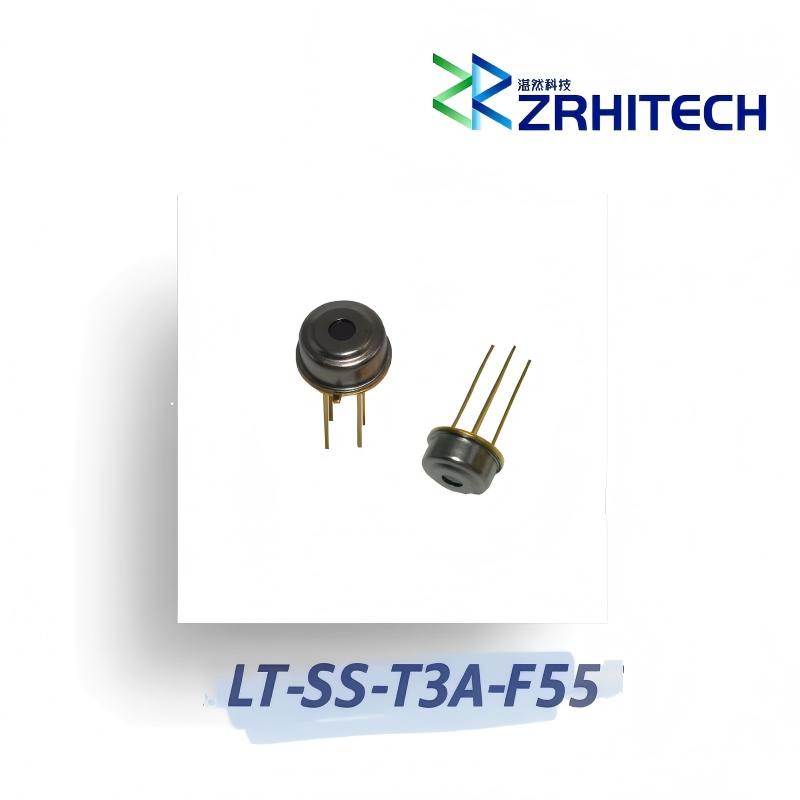

LT-SS-T3A-F55 High-Precision MEMS Temperature Sensor
Product Overview
LT-SS-T3A-F55 is a ZR part number for Temperature Sensor. TO-39 package, viewing Angle 38°; High infrared absorption layer structure, high sensitivity; Fully integrated digital infrared thermopile; I2C interface, support PWM, relay mode output; Good stability.
Key Features
- Application Environment: Human body, home appliances, industry and other temperature measurement fields
- High infrared absorption layer structure
- High sensitivity
- Non-contact temperature measurement
- High infrared response ratehigh repeatability high reliability
- RoHS, REACH Compliant
Specifications
| Item | Unites | T3 | Condition |
| Chip Size | mm | 1.8*1.8 | |
| Sensitive Area | mm | 1.4*1.4 | |
| Field | – | 108° | |
| Resistance | kΩ | 72±8 | |
| Temperature Coefficient Of Resistance | %/℃ | 0.11 | |
| Noise Figure | nV/Hz1/2 | 34±2 | |
| Noise Equivalent Power | nV/Hz1/2 | 0.43 | |
| Response Ratio | V/W | 78 | |
| Time Constant | ms | 25 | |
| Detectivity | cm*Hz1/2/W | 1.6E08 | |
| Thermistor Value | kΩ | 100±1% | |
| Thermistor Beta Value | K | 3950±1% | |
| Operating Temperature | ℃ | -20~+100 | |
| Storage Temperature | ℃ | -40~+125 |
Package Dimension (Unit:mm)
