Features:
High Rejection
Product Name:
9.6GHz LT-TFCF series Thin-film Filter
Application:
Wireless Communication
Material:
Aluminum
Temperature:
-55~85℃
Frequency Range:
8.6 To 10.6 GHz
Color:
Silver
Low Insertion Loss:
≤2.5dB
Packaging Details:
carton packing
Description
9.6GHz LT-TFCF series Thin-film Filter
Product Overview

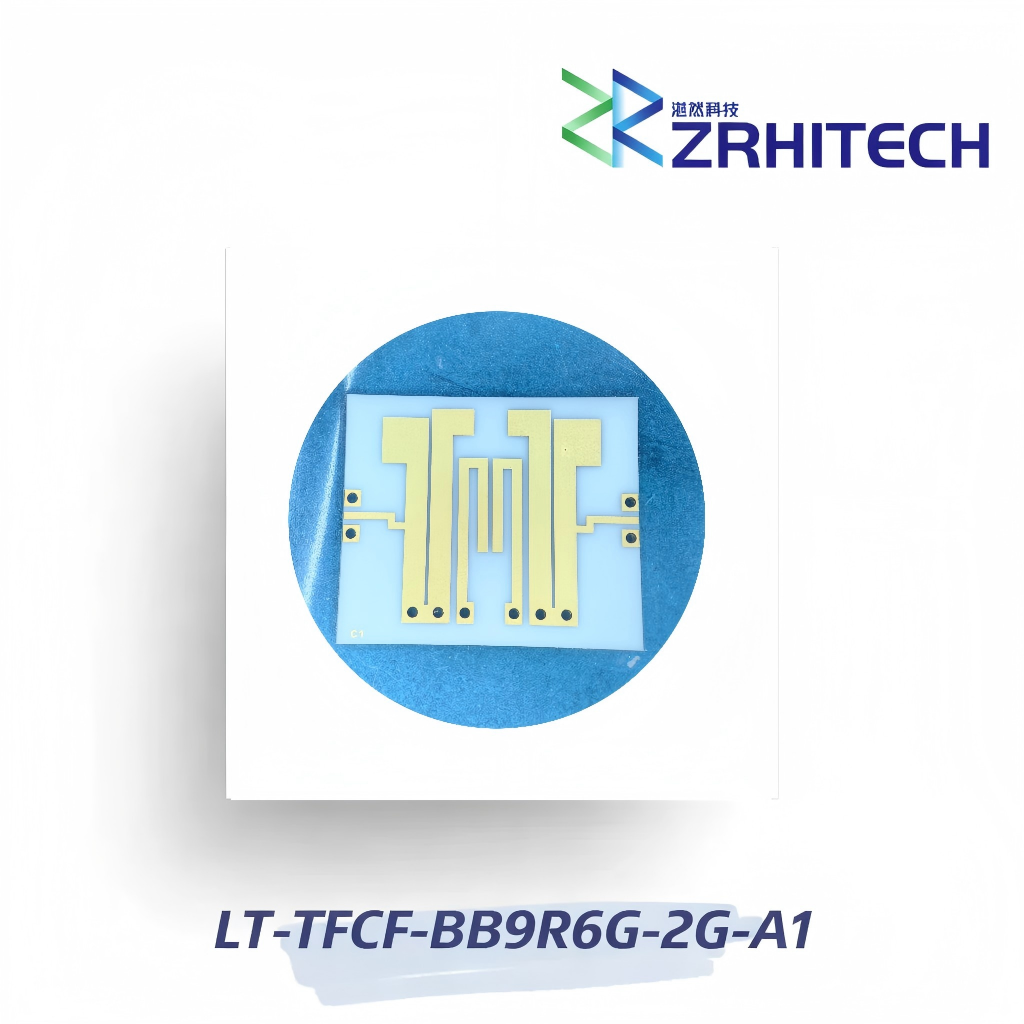

The LT-TFCF-BB9R6G-2G-A1 from ZR is a Thin-film Filter with Frequency 8.6 to 10.6 GHz, Bandwidth 2 GHz, Insertion Loss ≤ 2.5dB, Rejection 40 to 45 dB. Tags: Surface Mount, Thin-film Filter. This filter is widely used in various Wireless Communication. More details for LT-TFCF-BB9R6G-2G-A1 can be seen below.
Key Features
- Aluminum housing
- CustomizableFrequency
- -55℃~+85℃ Operating Temperature
- Surface Mount
- Small Size
- Low cost
- CE, RoHS, REACH compliant
- 1 Year Warranty
Specifications
Electrical / Optical Characteristics (Ta=25℃±3℃)
| Items | Specification | Conditions |
| Part Number | LT-TFCF-BB9R6G-2G-A1 | |
| Frequency Range | 8.6GHz~10.6GHz | |
| Insertion Loss | ≤2.5dB | |
| Ripple in Bandwidth | ≤1dB | |
| Input/Output VSWR | ≤1.5 | |
| Input/Output Impedance | 50Ω | |
| Operating Temperature | -55℃~+85℃ | |
| Attenuation | ≥40dBc@7.2GHz | |
| ≥45dBc@11.8GHz | ||
| Dimension | 5.4×3.8×0.254mm | |
| Note: for custom specs, please contact us directly. | ||
Outline Drawing (Unit: mm):
