Detail Information
Place of Origin:
CHINA
Features:
High Rejection
Product Name:
7.0GHz LT-TFCF series Thin-film Filter
Application:
Wireless Communication
Material:
Aluminum
Temperature:
-55~85℃
Frequency Range:
6.6GHz~7.4GHz
Color:
Silver
Low Insertion Loss:
≤3.5 dB
Packaging Details:
carton packing
Description
7.0GHz LT-TFCF series Thin-film Filter
Product Overview

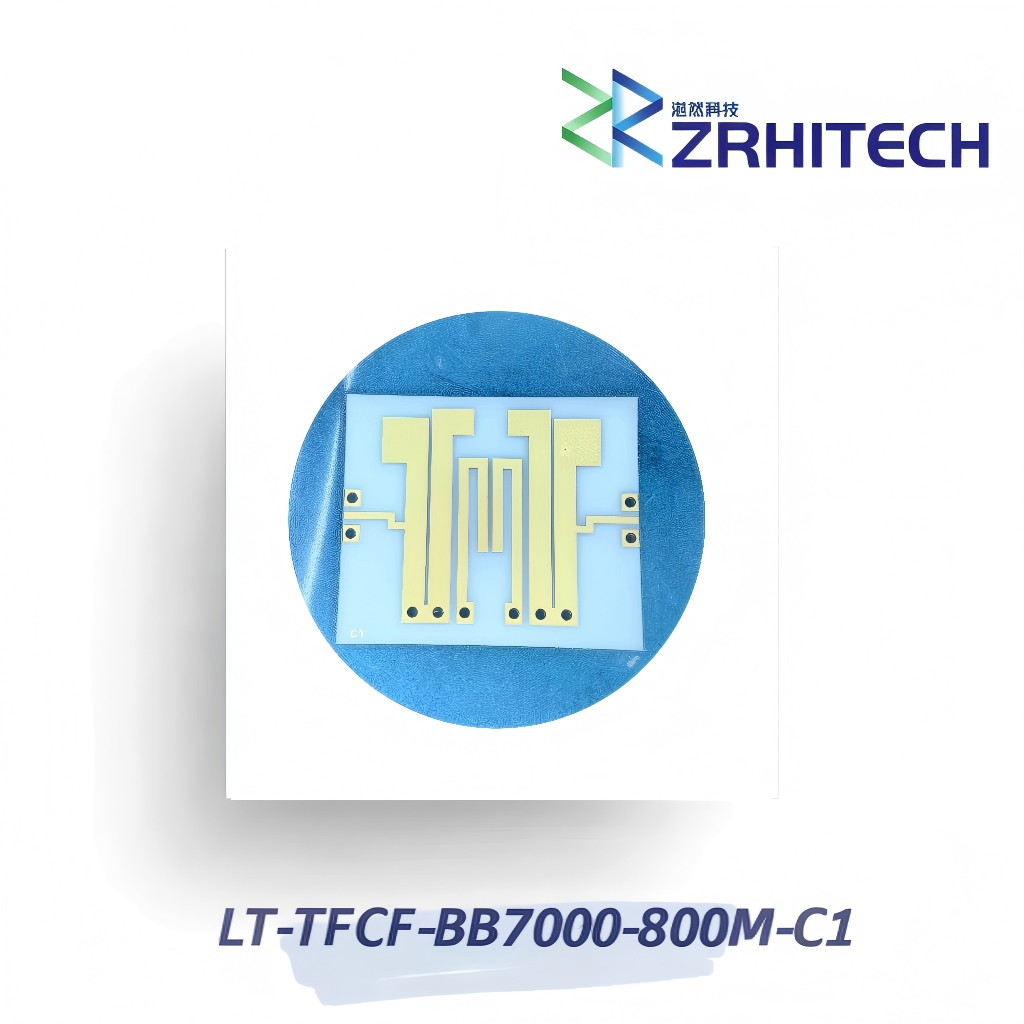

The LT-TFCF-BB7000-800M-C1 from ZR is a Thin-film Filter with Frequency 6.6 to 7.4 GHz, Bandwidth 0.8 GHz, Insertion Loss ≤ 3.5dB, Rejection 40 dB. Tags: Surface Mount, Thin-film Filter. This filter is widely used in various Wireless Communication. More details for LT-TFCF-BB7000-800M-C1 can be seen below.
Key Features
- Aluminum housing
- CustomizableFrequency
- -55℃~+85℃ Operating Temperature
- Surface Mount
- Small Size
- Low cost
- CE, RoHS, REACH compliant
- 1 Year Warranty
Specifications
Electrical / Optical Characteristics (Ta=25℃±3℃)
| Items | Specification | Conditions |
| Part Number | LT-TFCF-BB7000-800M-C1 | |
| Center Frequency | 7.0GHz | |
| Frequency Range | 6.6GHz~7.4GHz | |
| Insertion Loss | ≤3.5dB | |
| Ripple in Bandwidth | ≤1.2dB | |
| VSWR | ≤2.0 | |
| Input/Output Impedance | 50Ω | |
| Maximum Input Power | 35dBm | |
| Operating Temperature | -55℃~+85℃ | |
| Storage Temperature | -55˚C ~ +125˚C | |
| Attenuation | ≥40dBc@DC~6.05GHz | |
| ≥40dBc@7.95~15GHz | ||
| Dimension | 8.8×4.7×0.381mm | |
| Note: for custom specs, please contact us directly. | ||
Outline Drawing (Unit: mm):
