6 to 40 GHz Power Divider
Description

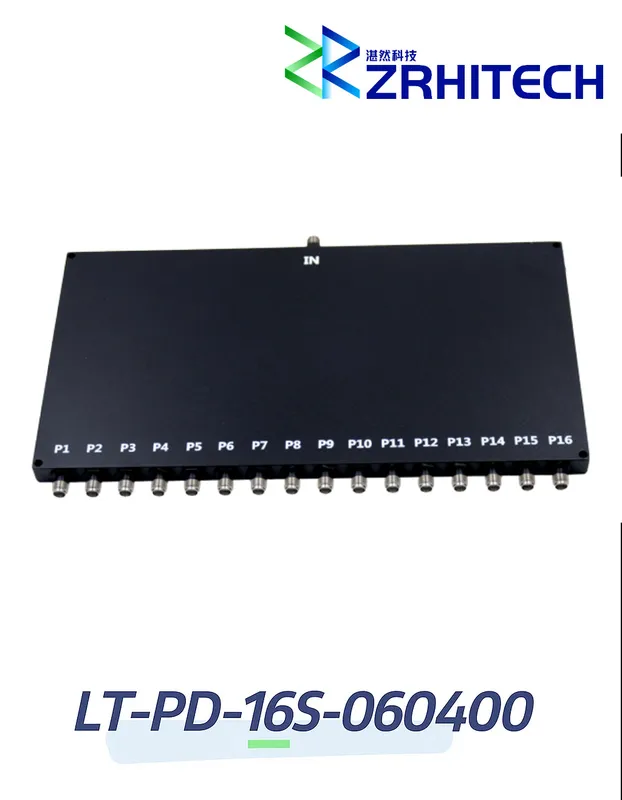

6 to 40 GHz 20 Watt LT-PD Series 16-Way Power Divider
Quick Detail:
- 16-Way Power Divider
- Stripline Design
- -55℃ to +85℃ operating temperature
- 6 to 40 GHz Frequency Range
- Max Power 20 Watt
- Insertion Loss < 5.5 dB
- Isolation > 16 dB
- CE, RoHS, REACH compliant
- 1 Year Warranty
Description:
The LT-PD-16S-060400 from ZR is a 16-way power divider that operates from 6 to 40 GHz and can handle up to 20 Watt (CW) with 5.5 dB max insertion loss and 16 dB min isolation. The package interface uses 2.92mm-Female connectors and is REACH and RoHS compliant.
Specifications
| Items | Specification | Conditions |
|---|---|---|
| Part Number | LT-PD-16S-060400 | |
| Frequency Range | 6 to 40 GHz | |
| Impedance | 50 Ohms | |
| Input VSWR | 1.8:1 Max. | |
| Output VSWR | 1.8:1 Max. | |
| Insertion Loss | 5.5 dB Max. | Excluding Nominal Splitter Loss 3.0dB |
| Isolation | 16 dB Min. | |
| Amplitude Balance | 1.6 dB Max. | |
| Phase Balance | 18 Degrees Max. | |
| Input Power | 20 kW | |
| Connectors | 2.92mm-Female | |
| Dimension | 44.5x210x12.7 mm |
Note: for custom specs, please contact us directly.
Outline Drawing:
