Detail Information
Place of Origin:
CHINA
Document:
Features:
Low Power Consumption
Product Name:
LT-CR Series Crystal Oscillator
Application:
Various Electronic Equipment And Instruments In The Field Of National Defense
Material:
Aluminum
Temperature:
-40~85℃
Frequency Range:
±25ppm
Operating Voltage:
2.97~3.63V
Color:
Silver
Packaging Details:
carton packing
Description

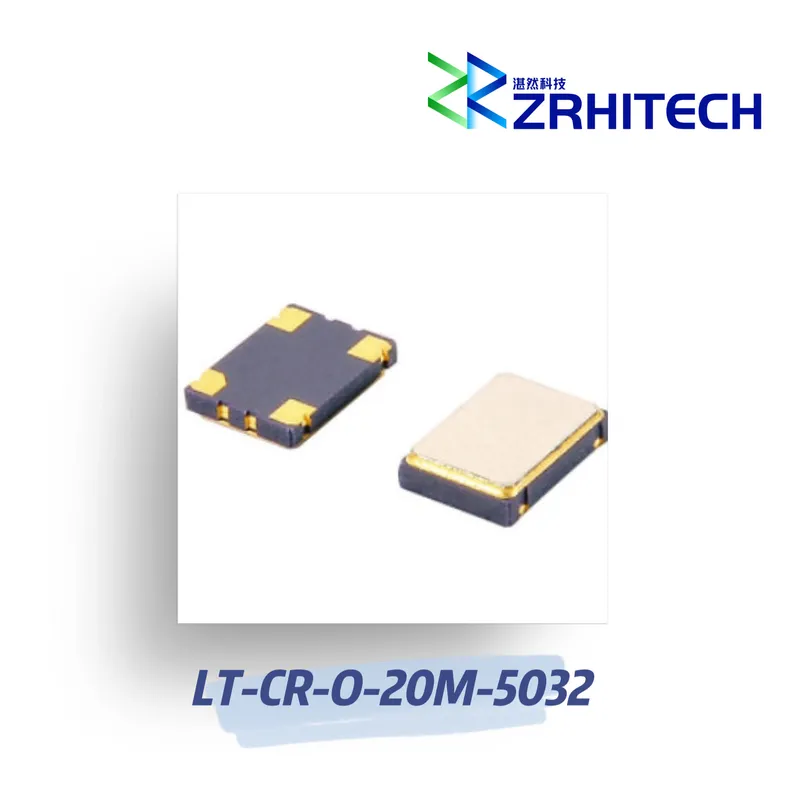

20MHz LT-CR series crystal oscillator
The LT-CR-O-20M-5032 is the newest addition to ZR’s line of Crystal Oscillator (XO) with a CMOS output from 1 to 156.25 MHz. This XO requires a supply voltage of 2.97V to 3.63V and consumes 20 mA of current. They are available in a hermetically sealed surface-mount package and measure 5×3.2×1.3mm. These XOs are widely used in various electronic equipment and instruments in the field of national defense.
Specifications
| Items | Specification | Conditions |
| Part Number | LT-CR-O-20M000-5032-3C | |
| Frequency Range | 20MHz | |
| Operating Voltage | 2.97~3.63V | |
| Frequency Stability vs. Temperature | ±25ppm | @-40~85℃ |
| Output Waveform | HCMOS | |
| Output Load | 15pF | |
| Duty Cycle(%) | 40~60
|
|
| Rise/Fall Time(ns) | 6ns | 10%~90% |
| Dimension | 5×3.2×1.3mm | |
| Note: for custom specs, please contact us directly. | ||
Note: for custom specs, please contact us directly.

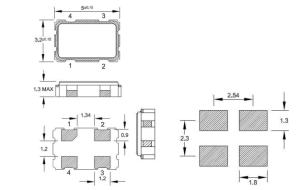

Outline Drawing (Unit: mm)
