Product Name:
LT-SF Series RF SAW Filter
Application:
Wireless Communication
Material:
Aluminum
Temperature:
-40~85℃
Frequency Range:
570 To 585 MHz
Color:
Silver
Low Insertion Loss:
1.6 To 2.0 DB
Packaging Details:
carton packing
Highlight:
saw voice filter, SAW Filter 577.5MHz, 577.5MHz SAW Filter
Description
577.5MHz RF SAW Band Pass Filter
Product Overview
| Attribute | Value |
|---|---|
| Product name | LT-SF series RF SAW Filter |
| Application | Wireless Communication |
| Features | High Rejection |
| Material | Aluminum |
| Temperature | -40~85℃ |
| Frequency range | 570 to 585 MHz |
| Color | Silver |
| Low Insertion Loss | 1.6 to 2.0 dB |
Product Description

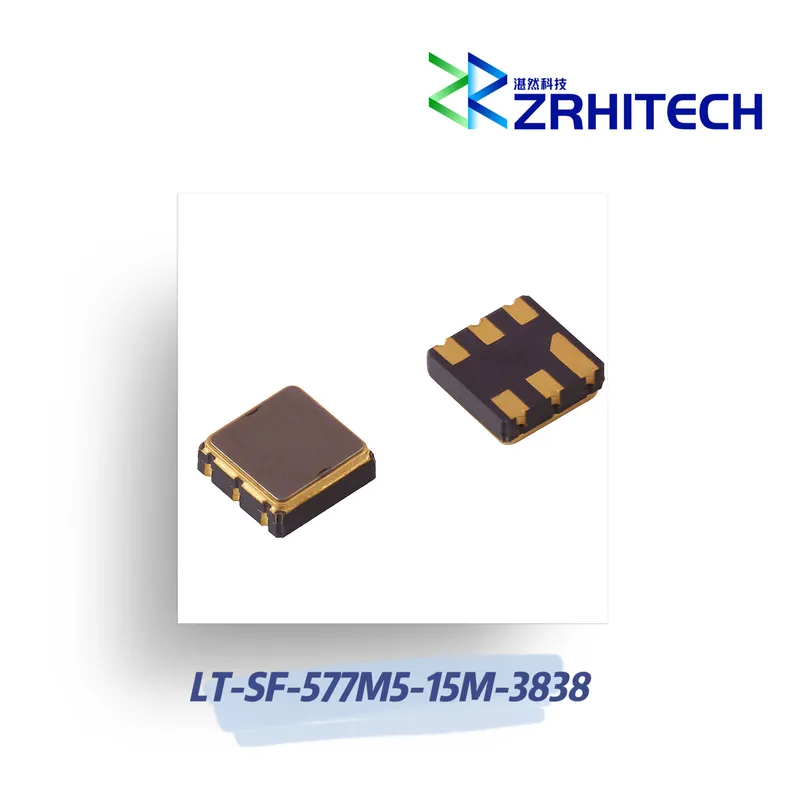

577.5MHz LT-SF series RF SAW Band Pass Filter
Quick Detail:
- Aluminum Housing
- Customizable Frequency
- -40℃~+85℃ Operating Temperature
- Surface Mount Package
- Small Size
- Low Cost
- CE, RoHS, REACH compliant
- 1 Year Warranty
The LT-SF-577M5-15M-3838 from ZR is a Band Pass Filter with Frequency 570 to 585 MHz, Bandwidth 15 MHz, Center Frequency 577.5 MHz, Insertion Loss 1.6 to 2.0 dB, Rejection 15 to 40 dB. Tags: Surface Mount, RF SAW Filter. This filter is widely used in various Wireless Communication.
Specifications
Electrical / Optical Characteristics (Ta=25℃ ±3℃)
| Items | Specification | Conditions |
|---|---|---|
| Part Number | LT-SF-577M5-15M-3838 | |
| Center Frequency | 577.5MHz | |
| Insertion Loss | – | |
| Insertion Loss(570.00-585.00MHz) | 2.0dB Max.;1.6dB Typ. | |
| Ripple in Bandwidth | 1.0dB Max.; 1.8dB Typ. | |
| Group Delay Variation | ||
| Input VSWR | 2.0 Max.; 1.8 Typ. | |
| Output VSWR | 2.0 Max.; 1.8 Typ. | |
| Attenuation | 40dB Min.@DC-535.00MHz 40dB Min.@700.00-1000.00MHz 30dB Min.@1500.00-2000.00MHz 15dB Min.@2000.00-3000.00MHz |
|
| Dimension | 3.8×3.8×1.5mm |
Note: for custom specs, please contact us directly.
