43.1 to 47.1 GHz Power Divider
Description

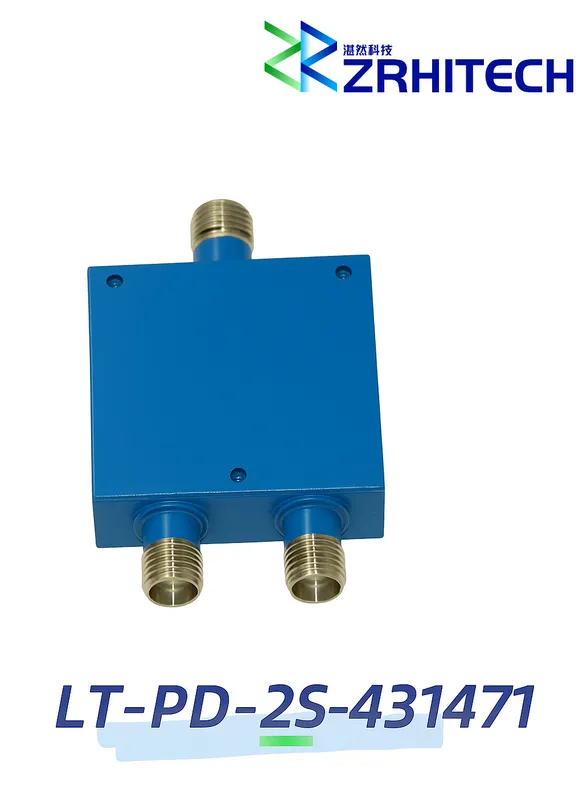

43.1 to 47.1 GHz 20 Watt LT-PD Series 2-Way Power Divider
Quick Detail:
- 2-Way Power Divider
- Stripline Design
- -55℃ to +85℃ operating temperature
- 43.1 to 47.1 GHz Frequency Range
- Max Power 20 Watt
- Insertion Loss < 1.8 dB
- Isolation > 20 dB
- CE, RoHS, REACH compliant
- 1 Year Warranty
Description:
The LT-PD-2S-431471 from ZR is a high-performance 2-way power divider operating in the 43.1 to 47.1 GHz frequency range. Capable of handling up to 20 Watt (CW) with maximum insertion loss of 1.8 dB and minimum isolation of 20 dB. Features 2.92mm-Female connectors and complies with REACH and RoHS standards.
Specifications
| Items | Specification | Conditions |
|---|---|---|
| Part Number | LT-PD-2S-431471 | |
| Frequency Range | 43.1 to 47.1 GHz | |
| Impedance | 50 Ohms | |
| Input VSWR | 1.6:1 Max. | |
| Output VSWR | 1.6:1 Max. | |
| Insertion Loss | 1.8 dB Max. | Excluding Nominal Splitter Loss 3.0dB |
| Isolation | 20 dB Min. | |
| Amplitude Balance | 0.4 dB Max. | |
| Phase Balance | 6 Degrees Max. | |
| Input Power | 20 kW | |
| Connectors | 2.92mm-Female | |
| Dimension | 21.6×26.9×12.7 mm |
Note: for custom specs, please contact us directly.
Outline Drawing:
