Detail Information
Place of Origin:
CHINA
Document:
Features:
Three-stage Bell Temperature Crystal Oscillator, Optional Three-state Control Function, High Precision, Low Phase Noise, There Are Anti-overload Products For Choice, Anti-overload > 30000g
Product Name:
LT-CR Series Temperature-compensated Crystal Oscillator
Application:
Satellite Communication, Military Communication Equipment, Base Station, Test And Measurement Equipment
Material:
Aluminum
Temperature:
±0.1ppm@-40~85℃, ±0.2ppm@-40~105℃
Frequency Range:
10MHz~50MHz
Voltage:
2.8V~5V
Color:
Silver
Packaging Details:
carton packing
Description

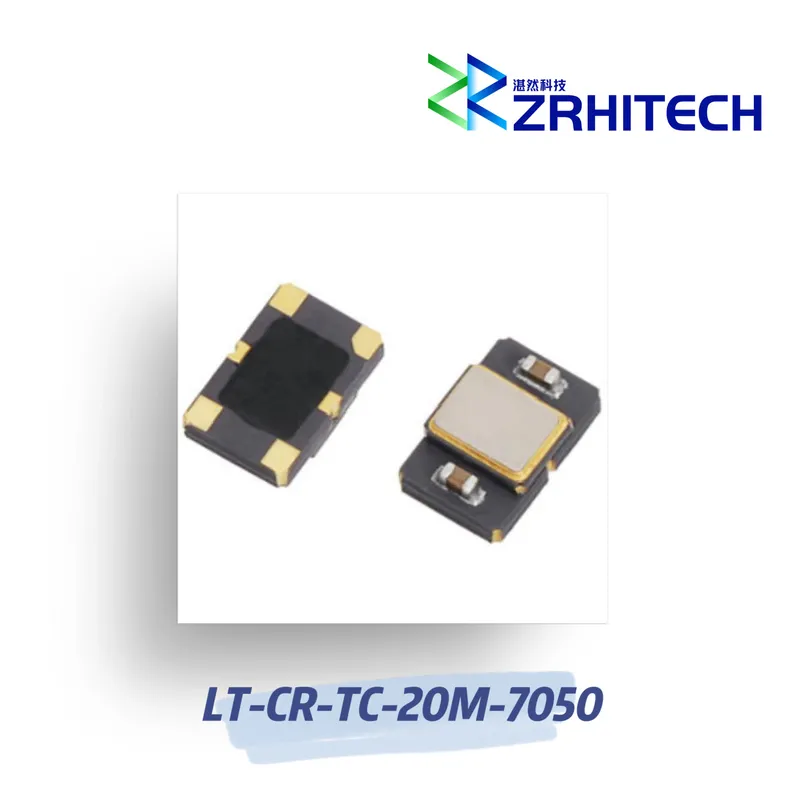

LT-CR-TC-20M-7050 TCXO
Product Overview
The LT-CR-TC-20M-7050 is a high-performance temperature-compensated crystal oscillator (TCXO) offering ultra-tight stability of ±0.1ppm@-40~85℃ and ±0.2ppm@-40~105℃. Designed for demanding applications, it features a compact 7.0×5.0×1.9 mm package with aluminum housing. Ideal for satellite communication systems, military communication equipment, base stations, and test/measurement equipment.
Key Features
- Frequency range: 10MHz~50MHz
- Operating voltage: 2.8V~5V
- High precision with ±0.1ppm stability
- Low phase noise performance
- Optional three-state control function
- Aluminum housing for durability
- Anti-overload capability (>30000g)
- CE, RoHS, REACH compliant
- 1-year warranty
Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-CR-TC-20M-7050 | |
| Frequency Range | 10MHz~50MHz | |
| Operating Voltage | 2.8V~5V | |
| Temperature Range | -40℃~105℃ | |
| Frequency Stability | ±0.1ppm@-40~85℃ ±0.2ppm@-40~105℃ |
Relative to 25℃ |
| Initial Accuracy | ±2ppm | @25℃±1℃ |
| Output Waveform | CMOS or cut peak sine wave | |
| Static Phase Noise | -150dBc/Hz@1kHz | Typical for 20M products |
| Vibration Phase Noise | -115dBc/Hz@1kHz | GJB360B-2009 method 214I-B |
| Dimensions | 7.0×5.0×1.9mm |
For specifications beyond the above table, please contact us for customization.
Product Dimensions
