Detail Information
Place of Origin:
CHINA
Features:
Low Phase Noise
Product Name:
LT-CR Series Voltage Controlled Crystal Oscillator
Application:
Telecommunications, Mobile Phones, Global Positioning System (GPS) And Other Electronic Systems
Material:
Aluminum
Temperature:
-40~85℃
Frequency Range:
40MHz~130MHz
Voltage:
1.65V±1.65V
Color:
Silver
Packaging Details:
carton packing
Description

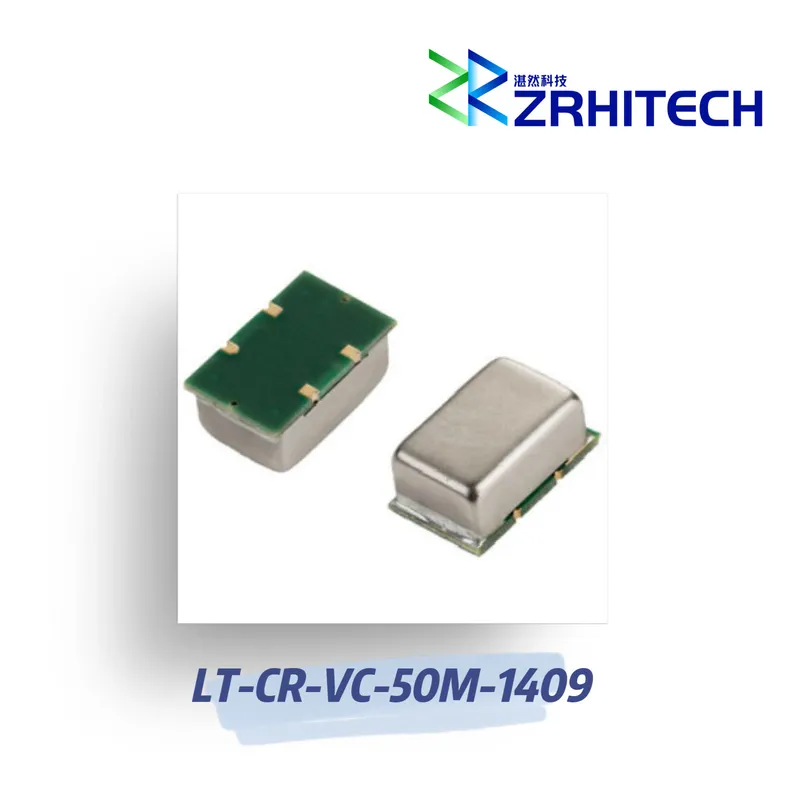

LT-CR Series Voltage Controlled Crystal Oscillator
Product Overview
The LT-CR-VC-50M-1409 is a high-performance voltage controlled crystal oscillator (VCXO) with a frequency range of 40MHz to 130MHz. Designed for precision timing applications, it features aluminum housing, SMD packaging, and excellent temperature stability. Wildly used in Telecommunications, mobile phones, GPS systems, satellite communication, military communication equipment, base stations, and test/measurement equipment.
Key Features
- Frequency range: 40MHz~130MHz
- Operating voltage: 3.3V±5%
- Operating temperature: -40℃ to +85℃
- High precision with ±25ppm stability
- Low phase noise performance
- HCMOS output waveform
- Compact 14.3mm × 9.3mm × 6.5mm ceramic package
- CE, RoHS, REACH compliant
- 1-year warranty
Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Frequency Range | 40MHz~130MHz | |
| Operating Voltage | 3.3V±5% | |
| Operating Current | ≤25mA | |
| Frequency Stability | ≤±25ppm | Relative to frequency at 25°C |
| Output Waveform | CMOS | |
| Phase Noise | -140dBc/Hz @1kHz -150dBc/Hz @10kHz -160dBc/Hz @100kHz |
Typical at 100MHz |
| Dimensions | 14×9 series (4pad) |
Outline Drawing
