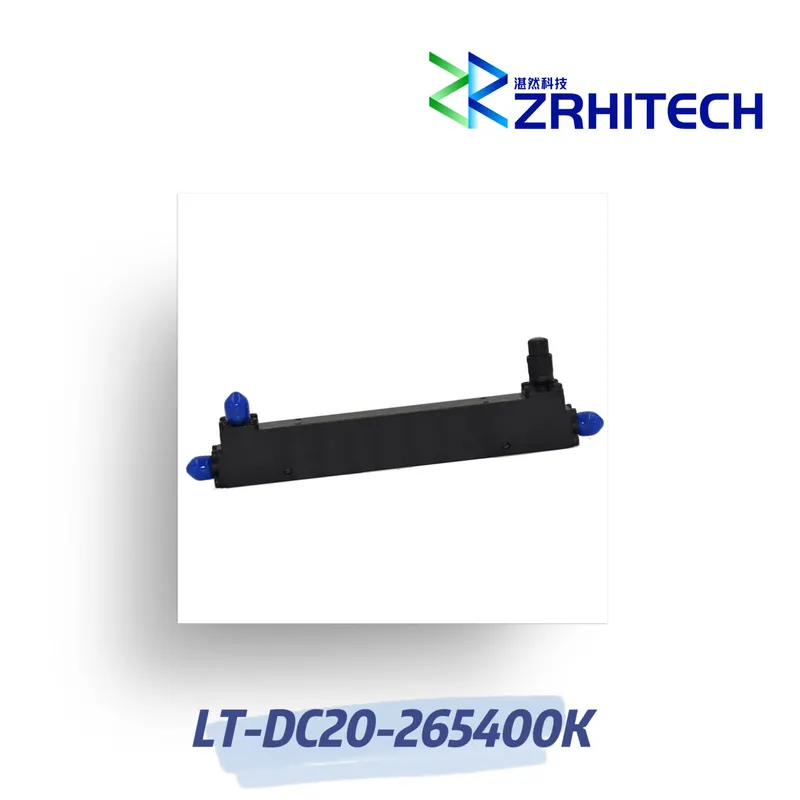

26.5 to 40 GHz 20 Watts LT-DC Series 20dB Directional Coupler for Industrial
Product Overview
The LT-DC20-265400K is a high-performance 20dB directional coupler designed for industrial applications, operating from 26.5 to 40 GHz with a maximum power handling of 20 Watts (CW).
Key Features
- 20dB Directional Coupler with >12 dB directivity
- Broad frequency range: 26.5 to 40 GHz
- Low VSWR: <1.7:1
- Precise coupling: 20±1.0 dB
- High power handling: 20 Watts (CW)
- Compliance: CE, RoHS, REACH
- 1-year warranty included
Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-DC20-265400K | |
| Frequency Range | 26.5 to 40 GHz | |
| Coupling | 20±1.0 dB | |
| Impedance | 50 Ohms | |
| Main Line VSWR | 1.7:1 Max. | |
| Coupling VSWR | 1.7:1 Max. | |
| Insertion Loss | 1.2 dB Max. | |
| Frequency Balance | 1.0 dB Max. | |
| Directivity | 12 dB Min. | |
| Input Power | 20 W | |
| Connectors | 2.92mm Female | |
| Weight | 45 g | |
| Dimension | 31.8×12.7×15.9 mm |
Product Dimensions
