Detail Information
Place of Origin:
CHINA
Document:
Product Name:
LT-PA Series Power Amplifier
Application:
Wireless Communication
Material:
Aluminum
Temperature:
-40~50℃
Frequency Range:
3 To 6 GHz
Color:
Silver
Packaging Details:
carton packing
Description

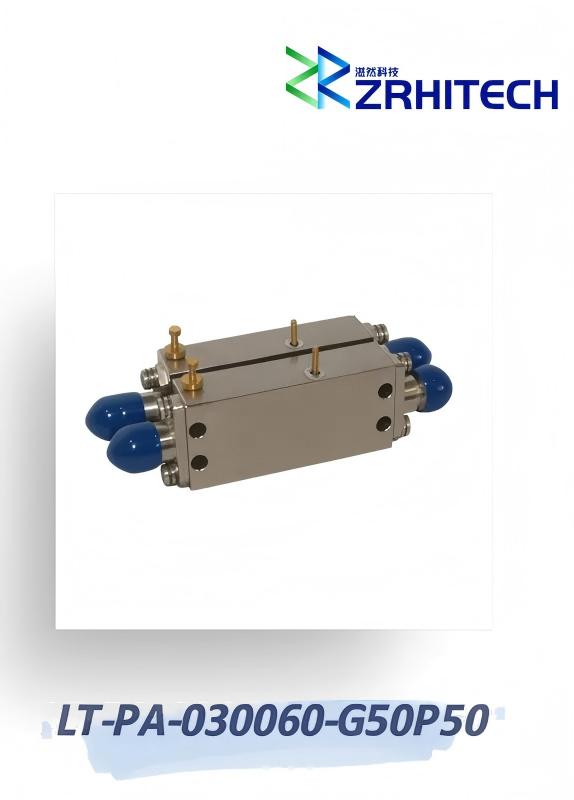

3 to 6 GHz 50dBm Power Amplifier with 50 dB Small Signal Gain
Product Overview
The LT-PA-030060-G50P50 is a high-performance RF power amplifier designed for wireless communication applications, featuring a broad frequency range of 3 to 6 GHz with exceptional 50dB small signal gain.
Key Features
- Durable aluminum housing for robust protection
- Customizable frequency options available
- Wide operating temperature range: -40℃ to +50℃
- 50dB small signal gain for superior performance
- High 50dBm output power capability
- Compliance with CE, RoHS, and REACH standards
- Includes 1-year manufacturer warranty
Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-PA-030060-G50P50 | |
| Configuration | Module with Connector | |
| Frequency Range | 3 to 6 GHz | |
| Small Signal Gain | 50 dB | |
| Gain Flatness | ±3.5 dB | |
| Output Power | 50dBm | |
| Input Power | 7W2 | |
| VSWR | 2.5:1 | |
| Power Supply | +48V / 12A | |
| Operating Temperature | -40 to +50 ℃ | |
| Dimension | 300x160x40 mm |
Note: Custom specifications available upon request. Please contact us for tailored solutions.

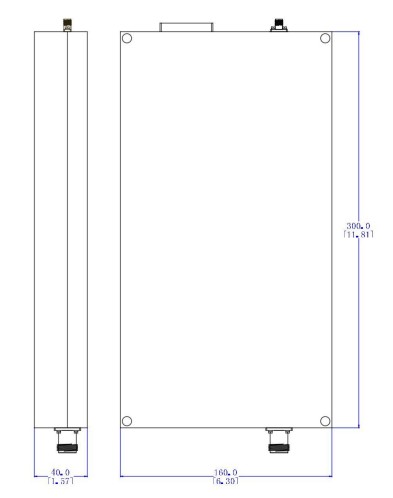

Product Dimensions
