Detail Information
Highlight:
3dBm Low Noise Amplifier, 2.95 GHz Low Noise Amplifier
Description

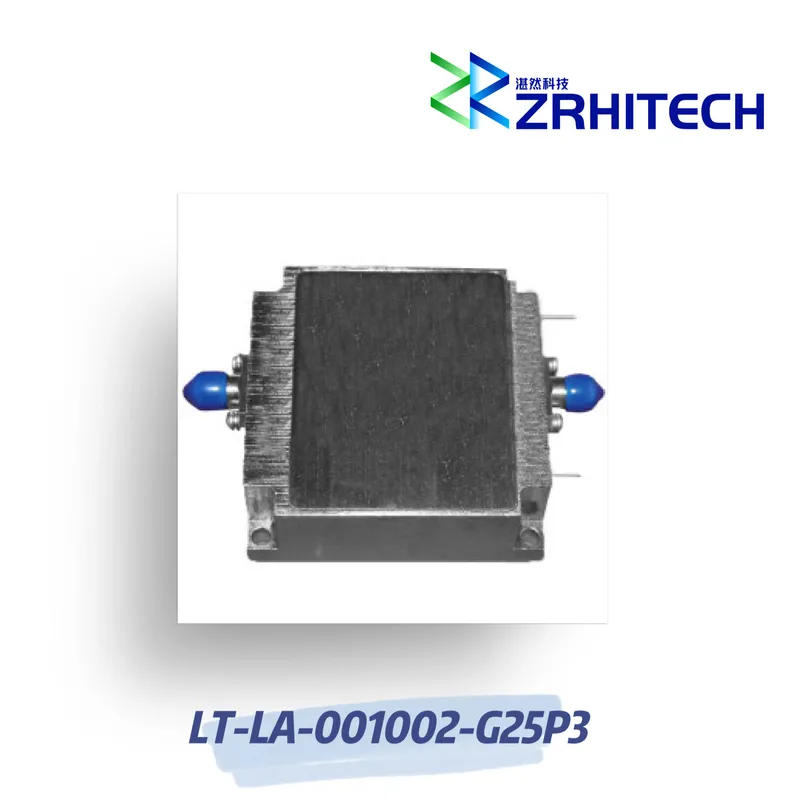

1.05 to 2.95 GHz 3dBm Low Noise Amplifier
Product Overview
The LT-LA-001002-G25P3 from ZR is a high-performance RF amplifier operating in the 1.05 to 2.95 GHz frequency range. This power amplifier features a consistent 25 dB small signal gain with ±1.5 dB flatness, delivering 3dBm output power with 15 dBm input power capability.
Quick Features
- Aluminum housing for durability
- Customizable frequency options available
- Wide operating temperature range: -40℃ to +70℃
- 25dB small signal gain
- Compliance with CE, RoHS, and REACH standards
- 1-year manufacturer warranty
Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-LA-001002-G25P3 | |
| Configuration | Module with Connector | |
| Frequency Range | 1.05 to 2.95 GHz | |
| Small Signal Gain | 25 dB | |
| Gain Flatness | ±1.5 dB | |
| Output Power | 3 dBm | |
| Input Power | 15 dBm | |
| VSWR | 2.0:1 | |
| Power Supply | +12V / TBD mA | |
| Operating Temperature | -40 to +70 ℃ | |
| Dimensions | 35×35×16 mm |
Note: Custom specifications available upon request. Please contact us for tailored solutions.

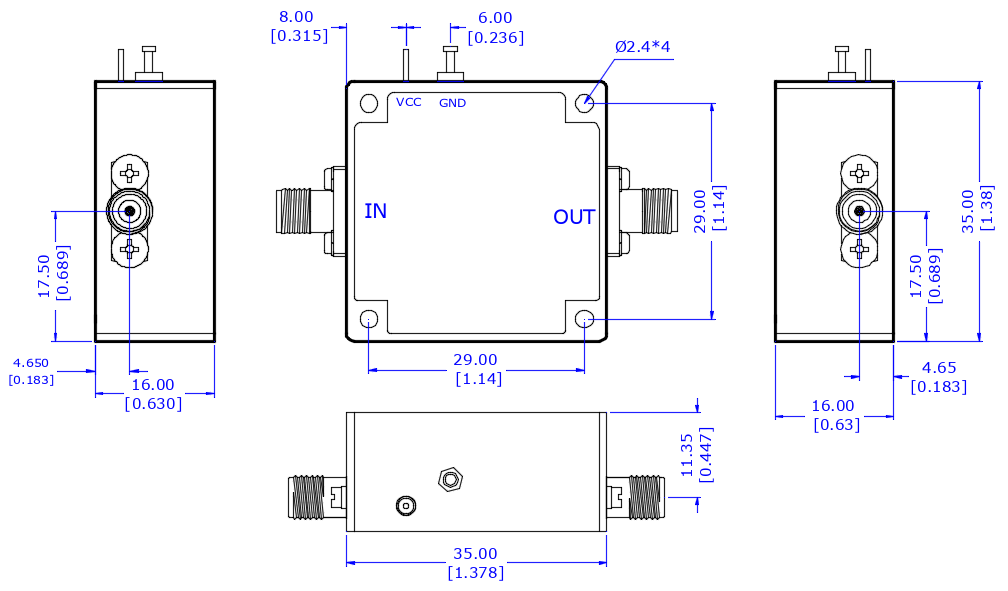

Outline Drawing
