35GHz LT-TFCF series Thin-film Filter
Application:
Wireless Communication
Material:
Aluminum
Temperature:
-55~85℃
Frequency Range:
34.5GHz~35.5GHz
Color:
Silver
Low Insertion Loss:
≤5 dB
Packaging Details:
carton packing
Description
35GHz LT-TFCF series Thin-film Filter
Product Overview
The LT-TFCF-BB35G-1G-A1 from ZR is a Thin-film Filter with Frequency 34.5 to 35.5 GHz, Bandwidth 1 GHz, Insertion Loss ≤ 5dB, Rejection 25 to 45 dB. Tags: Surface Mount, Thin-film Filter. This filter is widely used in various Wireless Communication. More details for LT-TFCF-BB35G-1G-A1 can be seen below.
Key Features
- Aluminum housing
- CustomizableFrequency
- -55℃~+85℃ Operating Temperature
- Surface Mount
- Small Size
- Low cost
- CE, RoHS, REACH compliant
- 1 Year Warranty
Specifications
Electrical / Optical Characteristics (Ta=25℃±3℃)
| Items | Specification | Conditions |
| Part Number | LT-TFCF-BB35G-1G-A1 | |
| Frequency Range | 34.5GHz~35.5GHz | |
| Insertion Loss | ≤5dB | |
| Ripple in Bandwidth | ≤1.5dB | |
| Input/Output VSWR | ≤1.5 | |
| Input/Output Impedance | 50Ω | |
| Operating Temperature | -55℃~+85℃ | |
| Attenuation | ≥25dBc@33.5GHz | |
| ≥45dBc@31GHz | ||
| Dimension | 6.9×1.9×0.254mm | |
| Note: for custom specs, please contact us directly. | ||

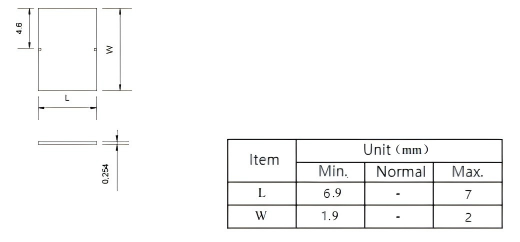

Outline Drawing (Unit: mm):
