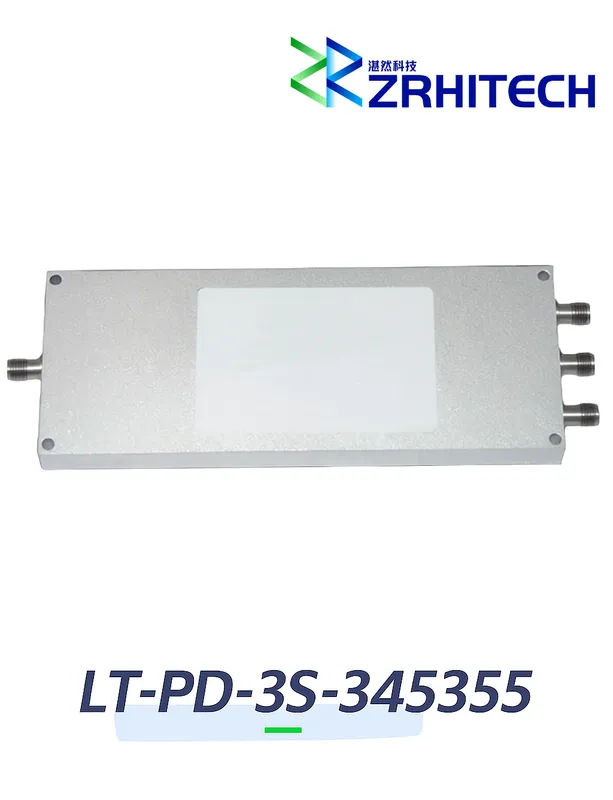

34.5 to 35.5 GHz 20 Watt LT-PD Series 3-Way Power Divider
Quick Detail:
- 3-Way Power Divider
- Stripline Design
- -55℃ to +85℃ operating temperature
- 34.5 to 35.5 GHz Frequency Range
- Max Power 20 Watt
- Insertion Loss < 1.8 dB
- Isolation > 18 dB
- CE, RoHS, REACH compliant
- 1 Year Warranty
Description:
The LT-PD-3S-345355 from ZR is a high-performance 3-way power divider operating in the 34.5 to 35.5 GHz frequency range. Capable of handling up to 20 Watt (CW) with maximum insertion loss of 1.8 dB and minimum isolation of 18 dB. The unit features 2.92mm-Female connectors and complies with REACH and RoHS standards.
Specifications
Electrical Characteristics (Ta=25℃±3℃)
| Items | Specification | Conditions |
|---|---|---|
| Part Number | LT-PD-3S-345355 | |
| Frequency Range | 34.5 to 35.5 GHz | |
| Impedance | 50 Ohms | |
| Input VSWR | 1.6:1 Max. | |
| Output VSWR | 1.6:1 Max. | |
| Insertion Loss | 1.8 dB Max. | Excluding Nominal Splitter Loss 3.0dB |
| Isolation | 18 dB Min. | |
| Amplitude Balance | 0.6 dB Max. | |
| Phase Balance | 6 Degrees Max. | |
| Input Power | 20 kW | |
| Connectors | 2.92mm-Female | |
| Dimension | 38.1×43.2×12.7 mm |
Note: for custom specifications, please contact us directly.
