Detail Information
Place of Origin:
CHINA
Document:
Product Name:
LT-PA Series Power Amplifier
Application:
Wireless Communication
Material:
Aluminum
Temperature:
-40~85℃
Frequency Range:
24 To 30 GHz
Color:
Silver
Packaging Details:
carton packing
Description

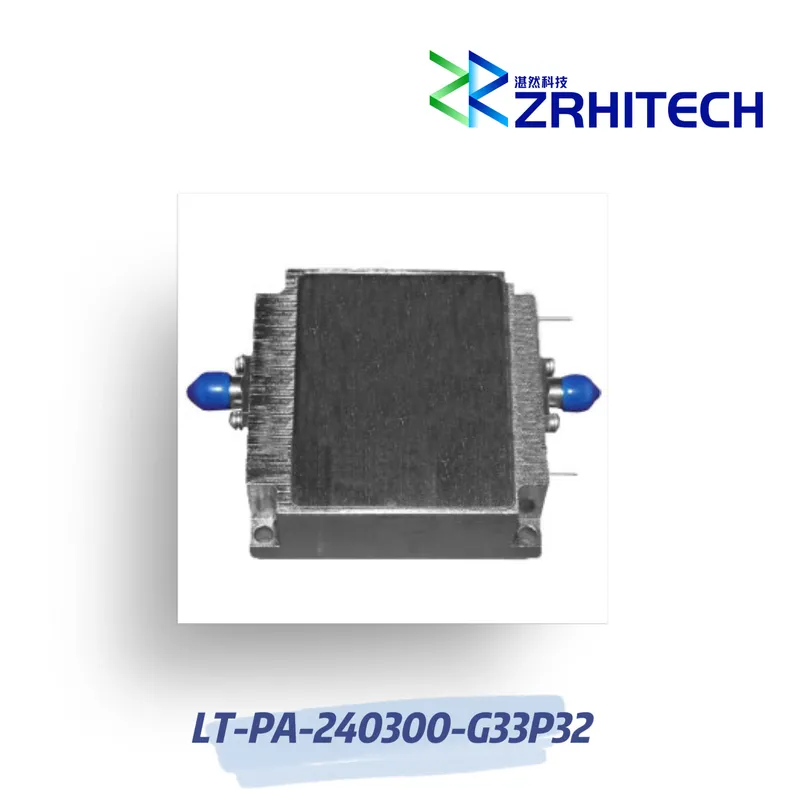

24 to 30 GHz LT-PA Series Power Amplifier
Product Overview
The LT-PA-240300-G33P32 from ZR is a RF Amplifier with Frequency 24 to 30 GHz, Small Signal Gain 33 dB, Gain Flatness ±2.0 dB, Output Power 32dBm, Input Power 5 dBm. Tags: Power Amplifier. More details for LT-PA-240300-G33P32 can be seen below.
Quick Detail:
- Aluminum Housing
- Customizable Frequency
- -40℃~+85℃ Operating Temperature
- Small Signal Gain 33dB
- CE, RoHS, REACH compliant
- 1 Year Warranty
Specifications
| Items | Specification | Conditions |
|---|---|---|
| Part Number | LT-PA-240300-G33P32 | |
| Configuration | Module with Connector | |
| Frequency Range | 24 to 30 GHz | |
| Small Signal Gain | 33 dB | |
| Gain Flatness | ±2.0 dB | |
| Output Power | 32 dBm | |
| Input Power | 5 dBm | |
| VSWR | 2.0:1 | |
| Power Supply | +15V / 2000 mA | |
| Operating Temperature | -20 to +60 ℃ | |
| Dimension | 50*70*25.4 mm |
Note: for custom specs, please contact us directly.

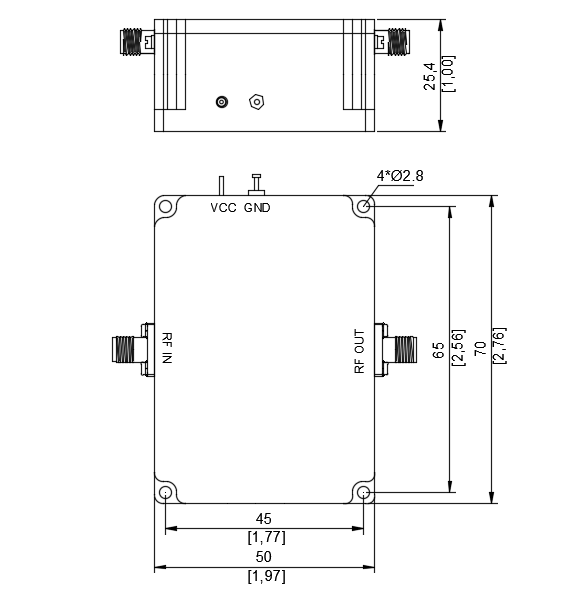

Outline Drawing (Unit: mm)
