Detail Information
Place of Origin:
CHINA
Features:
High Rejection
Product Name:
3.5GHz LT-TFCF series Thin-film Filter
Application:
Wireless Communication
Material:
Aluminum
Temperature:
-55~85℃
Frequency Range:
3 To 4 GHz
Color:
Silver
Low Insertion Loss:
≤3.0dB
Packaging Details:
carton packing
Description
3.5GHz LT-TFCF series Thin-film Filter
Product Overview
The LT-TFCF-BB3R5G-1G-A1 from ZR is a Thin-film Filter with Frequency 3 to 4 GHz, Bandwidth 1 GHz, Insertion Loss ≤ 2.5dB, Rejection 25 to 40 dB. Tags: Surface Mount, Thin-film Filter. This filter is widely used in various Wireless Communication. More details for LT-TFCF-BB3R5G-1G-A1 can be seen below.
Key Features
- Aluminum housing
- CustomizableFrequency
- -55℃~+85℃ Operating Temperature
- Surface Mount
- Small Size
- Low cost
- CE, RoHS, REACH compliant
- 1 Year Warranty
Specifications
Electrical / Optical Characteristics (Ta=25℃±3℃)
| Items | Specification | Conditions |
| Part Number | LT-TFCF-BB3R5G-1G-A1 | |
| Frequency Range | 3GHz~4GHz | |
| Insertion Loss | ≤3dB | |
| Ripple in Bandwidth | ≤1.5dB | |
| Input/Output VSWR | ≤1.5 | |
| Input/Output Impedance | 50Ω | |
| Operating Temperature | -55℃~+85℃ | |
| Attenuation | ≥25dBc@2.8GHz | |
| ≥40dBc@4.4GHz | ||
| Dimension | 10.9×9.9×0.254mm | |
| Note: for custom specs, please contact us directly. | ||

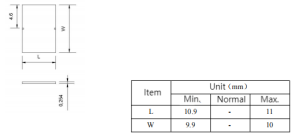

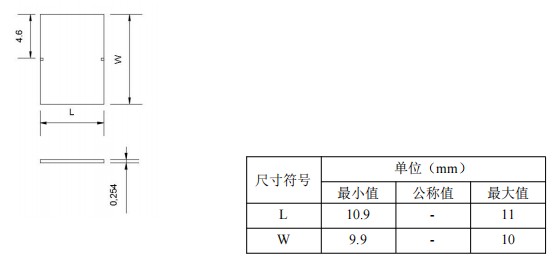

Outline Drawing (Unit: mm):
