Detail Information
Highlight:
40 Watt Power Divider, 3.1 to 3.5 GHz Power Divider
Description

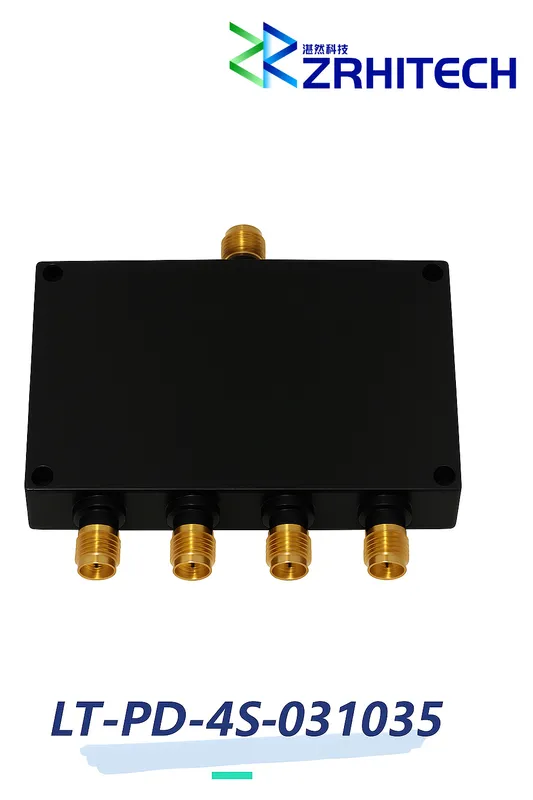

3.1 to 3.5 GHz 40 Watt LT-PD Series 4-Way Power Divider
Product Overview
The LT-PD-4S-031035 is a high-performance 4-way power divider operating in the 3.1 to 3.5 GHz frequency range with a maximum power handling capacity of 40 Watts.
Key Features
- 4-Way power division with stripline design
- Wide operating temperature range: -45℃ to +85℃
- Frequency range: 3.1 to 3.5 GHz
- Maximum power handling: 40 Watt
- Low insertion loss: < 0.45 dB
- High isolation: > 23 dB
- Compliance: CE, RoHS, REACH
- 1-year warranty
Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-PD-4S-031035 | |
| Frequency Range | 3.1 to 3.5 GHz | |
| Impedance | 50 Ohms | |
| Input VSWR | 1.3:1 Max. | |
| Output VSWR | 1.2:1 Max. | |
| Insertion Loss | 0.45 dB Max. | Excluding Nominal Splitter Loss 3.0dB |
| Isolation | 23 dB Min. | |
| Amplitude Balance | 0.2 dB Max. | |
| Phase Balance | 4 Degrees Max. | |
| Input Power | 40 kW | |
| Connectors | SMA-Female | |
| Dimensions | 65×45×11 mm |
Note: For custom specifications, please contact us directly.
Outline Drawing
