2 to 4 GHz Power Divider
Description

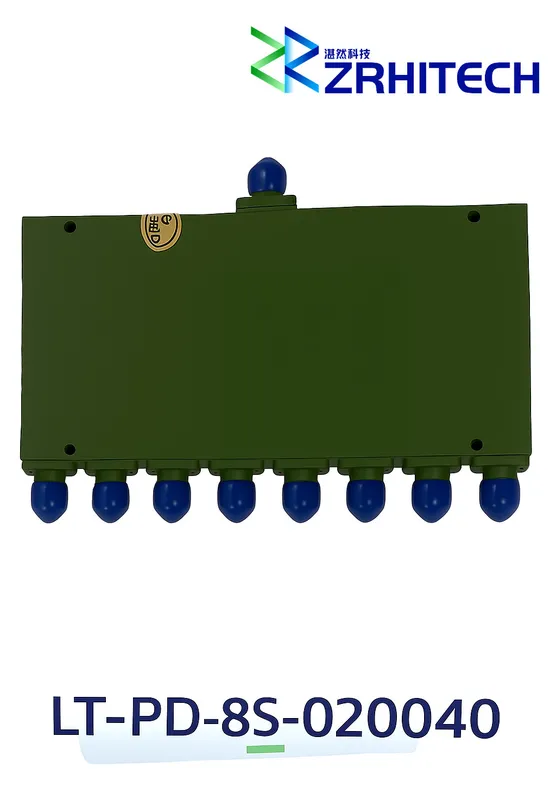

2 to 4 GHz 10 Watt LT-PD Series 8-Way Power Divider
Quick Detail:
- 8-Way Power Divider
- Stripline Design
- -40℃ to +70℃ operating temperature
- 2 to 4 GHz Frequency Range
- Max Power 10 Watt
- Insertion Loss < 1.2 dB
- Isolation > 20 dB
- CE, RoHS, REACH compliant
- 1 Year Warranty
Description:
The LT-PD-8S-020040 from ZR is an 8-way power divider that operates from 2 to 4 GHz and can handle up to 10 Watt (CW) with 1.2 dB max insertion loss and 20 dB min isolation. The package interface uses SMA-Female connectors and is REACH and RoHS compliant.
Specifications
| Items | Specification | Conditions |
|---|---|---|
| Part Number | LT-PD-8S-020040 | |
| Frequency Range | 2 to 4 GHz | |
| Impedance | 50 Ohms | |
| Input VSWR | 1.3:1 Max. | |
| Output VSWR | 1.3:1 Max. | |
| Insertion Loss | 1.2 dB Max. | Excluding Nominal Splitter Loss 3.0dB |
| Isolation | 20 dB Min. | |
| Amplitude Balance | 1.0 dB Max. | |
| Phase Balance | 10 Degrees Max. | |
| Input Power | 10 kW | |
| Connectors | SMA-Female | |
| Dimension | 112x55x12 mm |
Note: for custom specs, please contact us directly.
Outline Drawing:
