4.0 GHz Power Divider, 4 Way Power Divider
Description

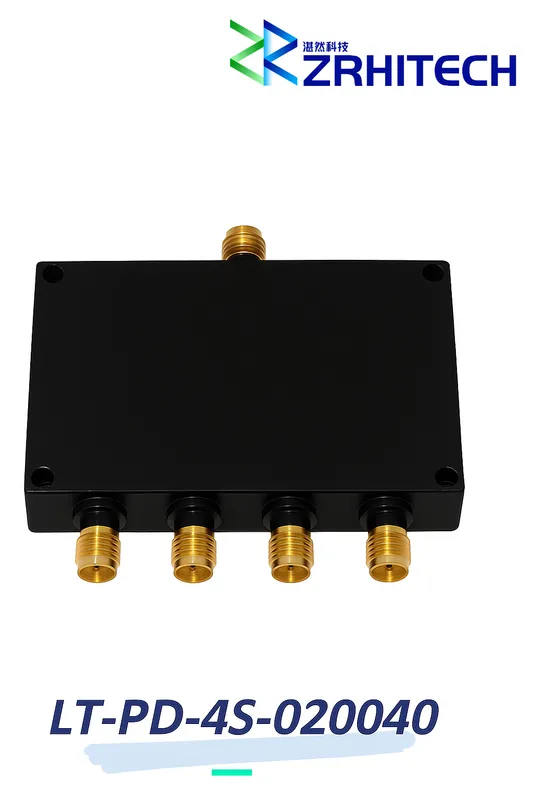

2.0 to 4.0 GHz 30 Watt LT-PD Series 4-Way Power Divider
Product Overview
The LT-PD-4S-020040 is a high-performance 4-way power divider designed for RF applications in the 2.0 to 4.0 GHz frequency range, featuring stripline design and robust construction for reliable operation.
Key Features
- 4-Way power division with stripline design
- Broad frequency range: 2.0 to 4.0 GHz
- Handles up to 30 Watt maximum power
- Low insertion loss: < 0.6 dB
- High isolation: > 20 dB
- Operating temperature range: -40℃ to +70℃
- SMA-Female connector interface
- Compliance with CE, RoHS, and REACH standards
- Includes 1-year warranty
Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-PD-4S-020040 | |
| Frequency Range | 2.0 to 4.0 GHz | |
| Impedance | 50 Ohms | |
| Input VSWR | 1.3:1 Max. | |
| Output VSWR | 1.2:1 Max. | |
| Insertion Loss | 0.6 dB Max. | Excluding Nominal Splitter Loss 3.0dB |
| Isolation | 20 dB Min. | |
| Amplitude Balance | 0.6 dB Max. | |
| Phase Balance | 6 Degrees Max. | |
| Input Power | 30 kW | |
| Connectors | SMA-Female | |
| Dimensions | 56 × 43 × 10 mm |
Note: Custom specifications available upon request.
Mechanical Outline
