2 to 40 GHz Power Divider
Description
2 to 40 GHz 20 Watt LT-PD Series 4-Way Power Divider
Quick Features
- 4-Way Power Divider with stripline design
- Broad frequency range: 2 to 40 GHz
- High power handling: 20 Watt maximum
- Low insertion loss: < 4.5 dB
- Excellent isolation: > 16 dB
- Wide operating temperature: -55℃ to +85℃
- Compliance: CE, RoHS, REACH
- 1 Year Warranty
Product Description

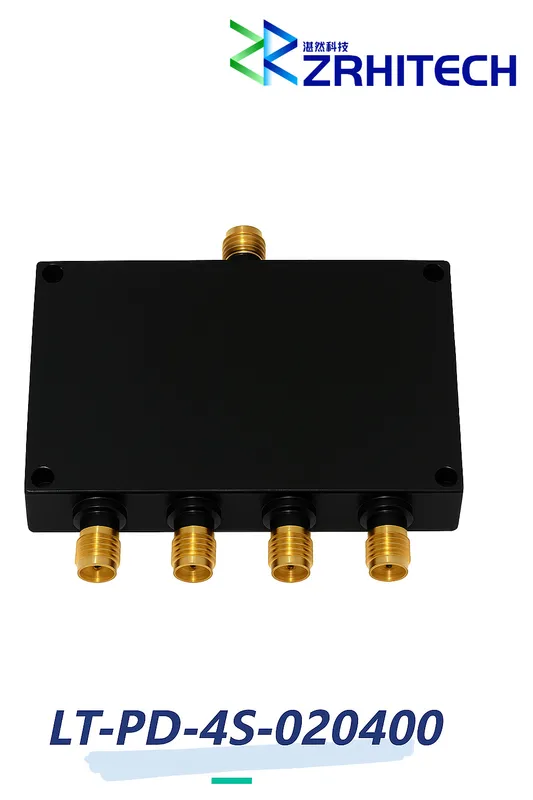

The LT-PD-4S-020400 is a high-performance 4-way power divider operating from 2 to 40 GHz. This robust component features 2.92mm-Female connectors and can handle up to 20 Watt (CW) with maximum insertion loss of 4.5 dB and minimum isolation of 16 dB. The unit is REACH and RoHS compliant, ensuring environmental safety and regulatory compliance.
Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-PD-4S-020400 | |
| Frequency Range | 2 to 40 GHz | |
| Impedance | 50 Ohms | |
| Input VSWR | 1.7:1 Max. | |
| Output VSWR | 1.7:1 Max. | |
| Insertion Loss | 4.5 dB Max. | Excluding Nominal Splitter Loss 3.0dB |
| Isolation | 16 dB Min. | |
| Amplitude Balance | 1.0 dB Max. | |
| Phase Balance | 12 Degrees Max. | |
| Input Power | 20 kW | |
| Connectors | 2.92mm-Female | |
| Dimensions | 79.2 × 51.6 × 12.7 mm |
Note: Custom specifications available upon request. Please contact us directly for tailored solutions.
Outline Drawing
