2 to 20 GHz Power Divider, 20 GHz Power Divider
Description

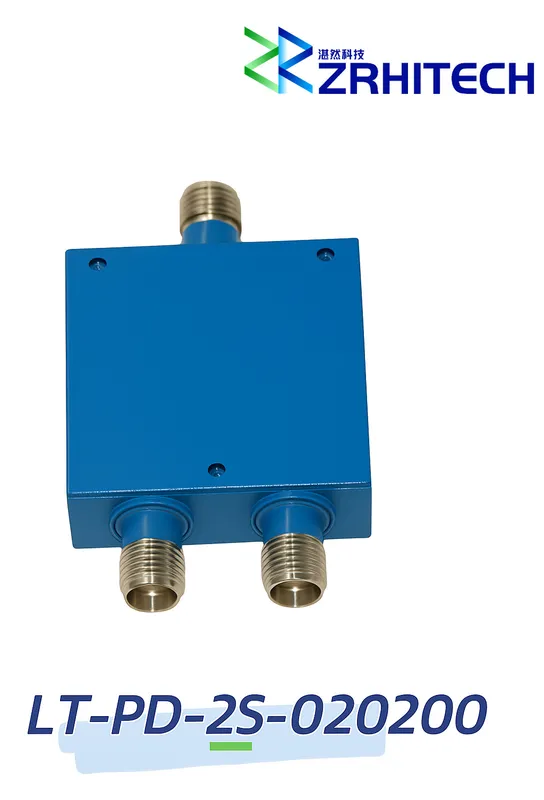

2 to 20 GHz 20 Watt LT-PD Series 2-Way Power Divider
Quick Detail:
- 2-Way Power Divider
- Stripline Design
- -55℃ to +85℃ operating temperature
- 2 to 20 GHz Frequency Range
- Max Power 20 Watt
- Insertion Loss < 1.2 dB
- Isolation > 18 dB
- CE, RoHS, REACH compliant
- 1 Year Warranty
Description:
The LT-PD-2S-020200 from ZR is a high-performance 2-way power divider operating from 2 to 20 GHz. Capable of handling up to 20 Watt (CW) with maximum insertion loss of 1.2 dB and minimum isolation of 18 dB. The unit features SMA-Female connectors and complies with REACH and RoHS standards.
Specifications
| Items | Specification | Conditions |
|---|---|---|
| Part Number | LT-PD-2S-020200 | |
| Frequency Range | 2 to 20 GHz | |
| Impedance | 50 Ohms | |
| Input VSWR | 1.5:1 Max. | |
| Output VSWR | 1.5:1 Max. | |
| Insertion Loss | 1.2 dB Max. | Excluding Nominal Splitter Loss 3.0dB |
| Isolation | 18 dB Min. | |
| Amplitude Balance | 0.6 dB Max. | |
| Phase Balance | 6 Degrees Max. | |
| Input Power | 20 kW | |
| Connectors | SMA-Female | |
| Dimension | 45.5×26.4×12.7 mm |
Note: for custom specs, please contact us directly.
Outline Drawing:
