Detail Information
Place of Origin:
CHINA
Document:
Product Name:
LT-SW Series PIN Doide Switch
Application:
Wireless Communication
Material:
Aluminum
Temperature:
-40~85℃
Frequency Range:
0.5 To 26 GHz
Color:
Silver
Packaging Details:
carton packing
Highlight:
26 GHz PIN Diode Switch
Description

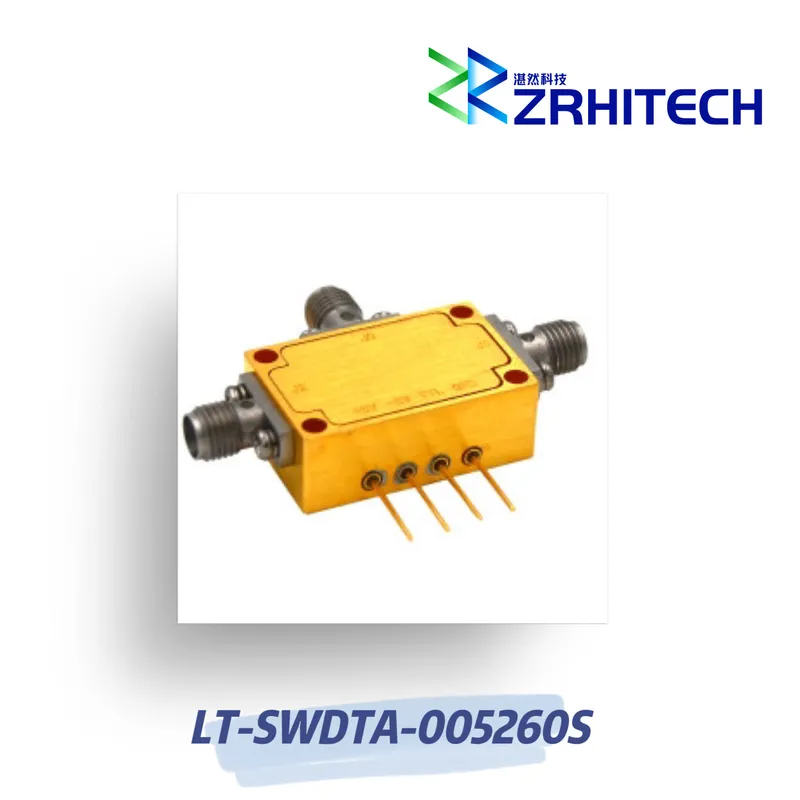

0.5 To 26 GHz SPDT Absorptive PIN Diode Switch
Product Overview
- Product name: LT-SW series PIN Diode Switch
- Application: Wireless Communication
- Material: Aluminum housing
- Operating temperature: -40℃ to +85℃
- Frequency range: 0.5 to 26 GHz
Key Features
- Aluminum housing for durability
- Customizable frequency options
- Wide operating temperature range (-40℃~+85℃)
- Fast switching time (100ns)
- CE, RoHS, REACH compliant
- 1 year warranty
Product Description
The LT-SWDTA-005260S is a high-performance absorptive PIN diode switch with a broad frequency range of 0.5 to 26 GHz. This SPDT configuration switch offers excellent isolation (50 dB) and fast switching speed (100ns). The device operates with a power supply bias of +5V/100mA and -5V/50mA.
Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-SWDTA-005260S | |
| Type | Absorptive | |
| Configuration | SPDT | |
| Frequency Range | 0.5 to 26 GHz | |
| Insertion Loss | 4.5 dB | |
| Isolation | 60 dB | |
| Switching Speed | 100 ns | |
| Control | TTL | |
| Input/Output VSWR | 2.5:1 | |
| Input Power | 0.2 W | |
| Power Supply (Bias) | +5V / 200mA -5V / 50mA |
|
| Dimensions | 22 × 13 × 9.5 mm |
Note: Custom specifications available upon request. Please contact us directly for details.
Outline Drawing
