Description

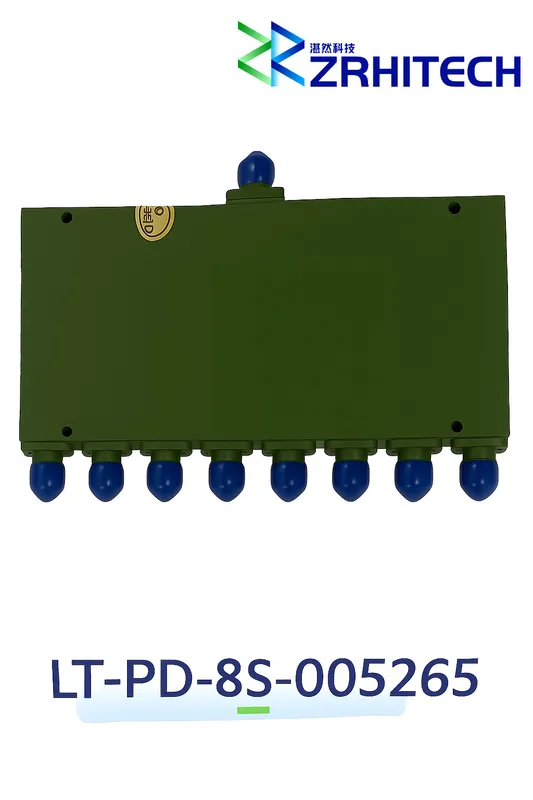

0.5 to 26.5 GHz 20 Watt LT-PD Series 8-Way Power Divider
Product Overview
The LT-PD-8S-005265 is a high-performance 8-way power divider with an extensive frequency range from 0.5 to 26.5 GHz, capable of handling up to 20 Watts continuous power.
Key Features
- 8-Way power division with stripline design
- Broad frequency range: 0.5 to 26.5 GHz
- High power handling: 20 Watts maximum
- Low insertion loss: < 8 dB
- Excellent isolation: > 15 dB
- Wide operating temperature range: -55℃ to +85℃
- Compliance with CE, RoHS, and REACH standards
- Includes 1-year warranty
Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-PD-8S-005265 | |
| Frequency Range | 0.5 to 26.5 GHz | |
| Impedance | 50 Ohms | |
| Input VSWR | 1.6:1 Max. | |
| Output VSWR | 1.6:1 Max. | |
| Insertion Loss | 8 dB Max. | Excluding Nominal Splitter Loss 3.0dB |
| Isolation | 15 dB Min. | |
| Amplitude Balance | 1.0 dB Max. | |
| Phase Balance | 14 Degrees Max. | |
| Input Power | 20 kW | |
| Connectors | SMA-Female | |
| Dimensions | 161.9 × 147.3 × 12.7 mm |
For custom specifications, please contact us directly.

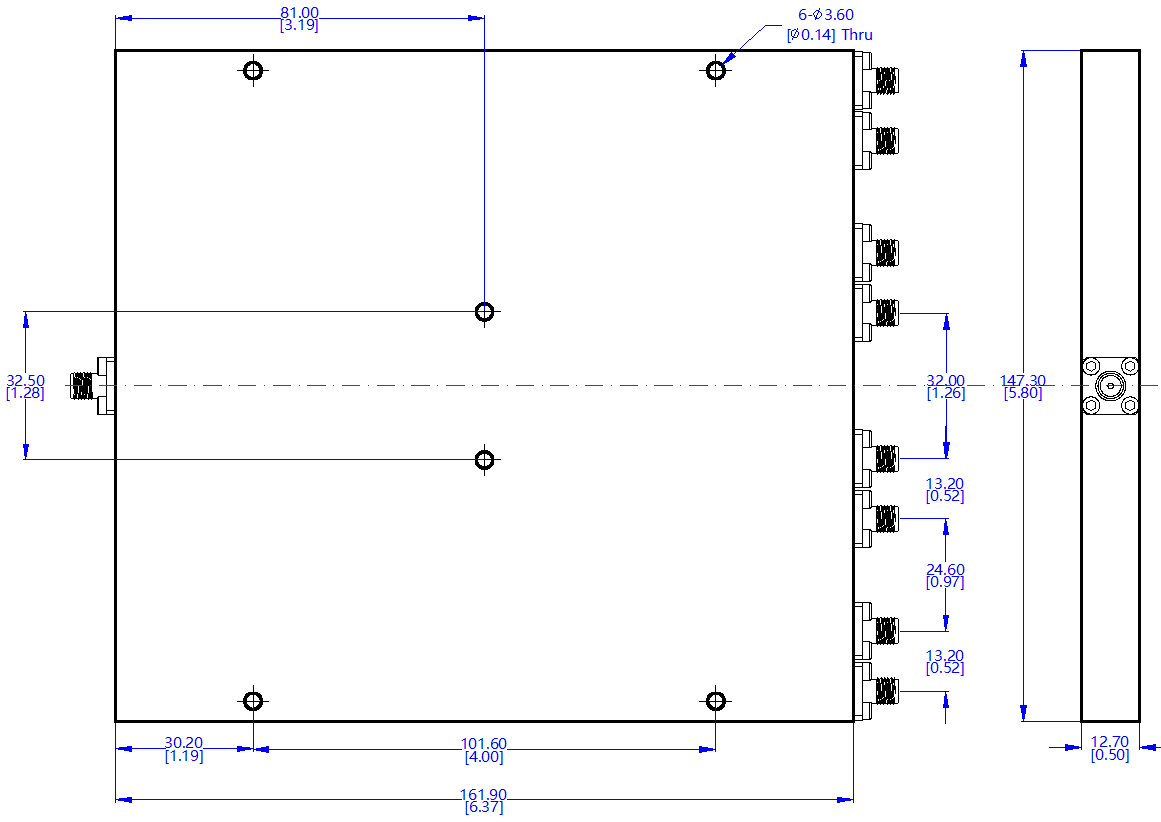

Outline Drawing
