Features:
Three-stage Bell Temperature Crystal Oscillator, Optional Three-state Control Function, High Precision, Low Phase Noise, There Are Anti-overload Products For Choice, Anti-overload > 30000g
Product Name:
LT-CR Series Temperature-compensated Crystal Oscillator
Application:
Satellite Communication, Military Communication Equipment, Base Station, Test And Measurement Equipment
Material:
Aluminum
Temperature:
-50℃ ~ +85℃
Frequency Range:
50MHz~156.25MHz
Voltage:
3.3/5V
Color:
Silver
Packaging Details:
carton packing
Description

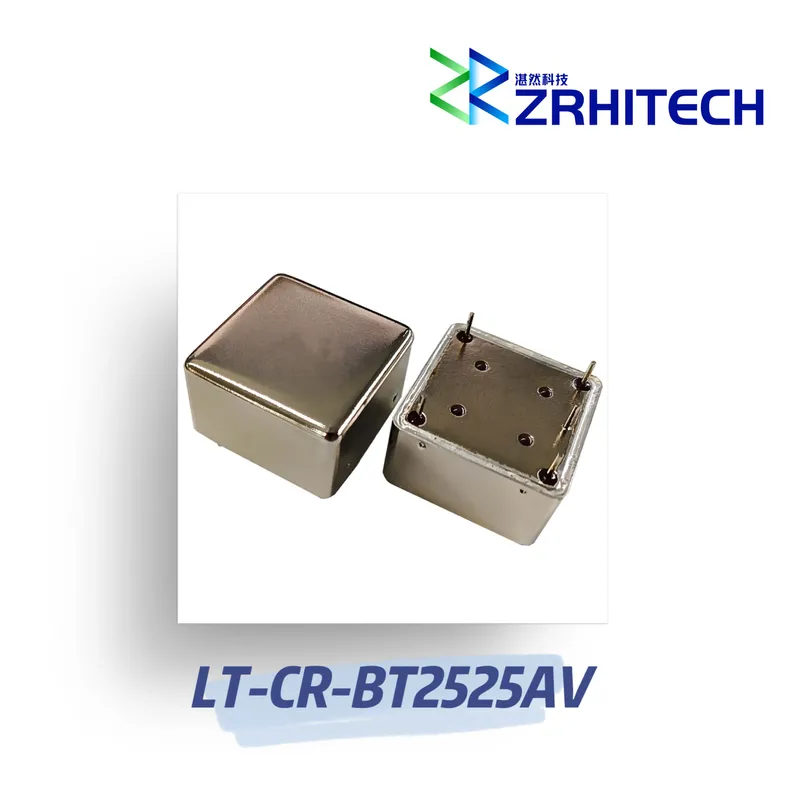

50MHz to 156.25MHz 25×25mm, Vibration Insensitive, High Precision & Low Phase Noise TCXO
Products Overview
The LT-CR-BT2525AV (anti-vibration) represents the latest advancement in ZR’s TCXO product line.
This standard component delivers exceptional stability of ±0.5ppm to ±2.0ppm across an extensive temperature range of -50ºC to +85ºC, with flexible 3.3V or 5.0V supply voltage options.
Key Features:
- Aluminum housing for durability
- 3.3V/5V operating voltage options
- Wide operating temperature range: -50℃ to +85℃
- Compact 25.1mm × 25.1mm package
- High precision with ±0.5ppm to ±2.0ppm stability
- Low phase noise performance
- Optional three-state control function
- Compliant with CE, RoHS, and REACH standards
- 1 Year Warranty included
Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-CR-BT2525AV | |
| Frequency Range | 50MHz~156.25MHz | |
| Operating Voltage | 3.3V / 5V | |
| Operating Temperature | -50℃~+85℃ | |
| Frequency Stability | ±0.5ppm ~±2.0ppm | -50℃~+85℃ |
| Frequency Tolerance | ±1.5ppm | At shipment, nominal EFC, +25℃ |
| Output Waveform | Sine Wave, LVCMOS | |
| Phase Noise | <-140dBc@1kHz <-155dBc@10kHz <-158dBc@100kHz |
@100MHz At +25℃ (static phase noise) |
| Dimensions | 25.1mm × 25.1mm |
