Detail Information
Place of Origin:
CHINA
Document:
Product Name:
LT-PA Series Power Amplifier
Application:
Wireless Communication
Signal Gain:
24dB
Temperature:
-40~85℃
Frequency Range:
2.5 To 3.5 GHz
Warranty:
12-Month
Packaging Details:
carton packing
Description
2.5-3.5 GHz 24dBm Broadband LNA 24dB Small Signal Gain Wideband Coverage Dynamic Range
Product Overview
The ZR LT-PA-025035-G24P24 is a precision RF power amplifier optimized for critical applications in the 2.5-3.5GHz frequency range. This high-performance unit delivers 24dB gain with exceptional ±1.0dB flatness, producing 24dBm output power from just 10dBm input while maintaining excellent linearity.
Key Features
- Narrowband High-Efficiency Operation (2.5-3.5GHz)
- 24dB Signal Gain with ±1.0dB Flatness
- 24dBm High Output Power Capability
- Military-Grade Aluminum Housing
- Extended Temperature Range (-40°C to +85°C)
- Custom Frequency Tuning Available
- Fully Compliant with CE/RoHS/REACH Standards
- 12-Month Manufacturer Warranty
Specifications
| Items | Specification | Conditions |
| Part Number | LT-PA025035-G24P24 | |
| Configuration | Module with Connector | |
| Frequency Range | 2.5 to 3.5 GHz | |
| Small Signal Gain | 24 dB | |
| Gain Flatness | ±1.0 dB | |
| Output Power | 24 dBm | |
| Input Power | 10 dBm | |
| VSWR | 2.0:1 | |
| Power Supply | +12V / 260mA | |
| Operating Temperature | -40 to +85 ℃ | |
| Dimension | 34.4*16.8*8.1 mm | |
| Note: for custom specs, please contact us directly. | ||

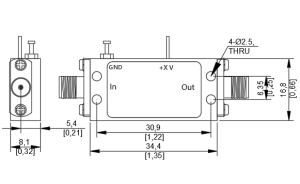

Outline Drawing (Unit: mm):
