Features:
High Rejection
Product Name:

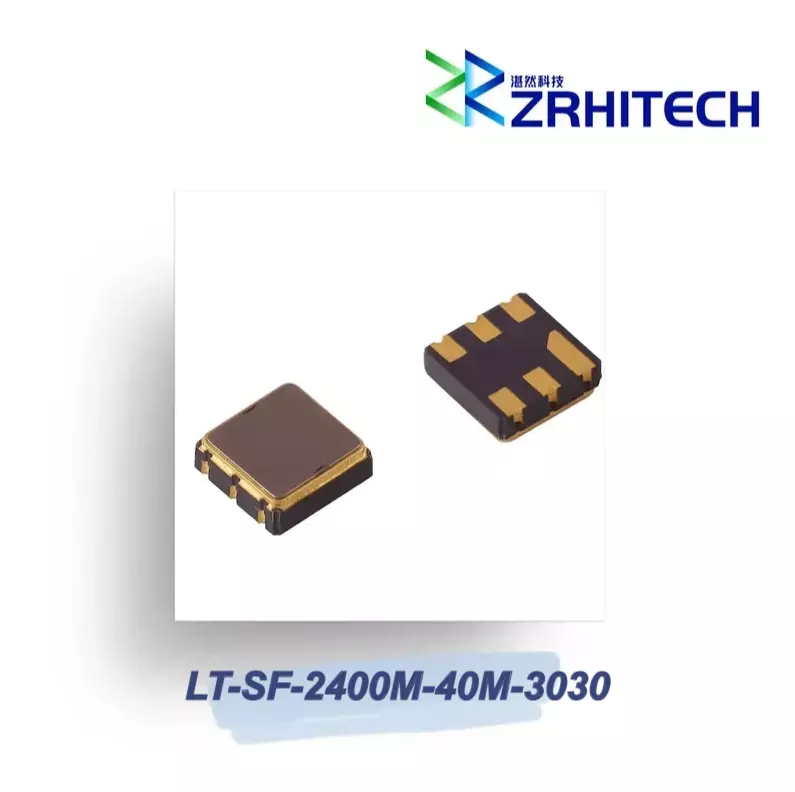

LT-SF Series RF SAW Filter
Application:
Wireless Communication
Material:
Aluminum
Temperature:
-40~85℃
Frequency Range:
2380 To 2420 MHz
Color:
Silver
Low Insertion Loss:
3.0 To 3.5 DB
Packaging Details:
carton packing
Highlight:
saw filter digikey, 2400 MHz Bandpass Filter, SAW Filter 2400MHz
Description
2400MHz LT-SF series Band Pass Filter
Quick Detail:
- Aluminum housing
- CustomizableFrequency
- -40℃~+85℃ operating temperature
- Surface Mount
- Small Size
- Low cost
- CE, RoHS, REACH compliant
- 1 Year Warranty
Description:
The LT-SF-2400M-40M-3030 from ZR is a Band Pass Filter with Frequency 2380 to 2420 MHz, Bandwidth 40 MHz, Center Frequency 2400 MHz, Insertion Loss 3.0 dB, Rejection 30 dB. Tags: Surface Mount, RF SAW Filter. This filter is widely used in various Wireless Communication.More details for LT-SF-2400M-40M-3030 can be seen below.
Specifications
Electrical / Optical Characteristics (Ta=25℃±3℃)
| Items | Specification | Conditions |
| Part Number | LT-SF-2400M-40M-3030 | |
| Center Frequency | 2400MHz | |
| Insertion Loss(2380~2420MHz) | 3.5dB Max.3.0dB Typ.; | |
| Ripple in Bandwidth(2380~2420MHz) | 1.0dB Max.0.8dB Typ.; | |
| Group Delay Variation | 20 ns Max.10 ns Typ.; | |
| Input/Output VSWR | 2.0:0 Max.1.7:1 Typ.; | |
| Attenuation | 30dB Min.@DC-2320.00 MHz | |
| 30dB Min.@2480.00-3000.00MHz | ||
| Dimension | 3.0×3.0x1.25mm | |
| Note: for custom specs, please contact us directly. | ||

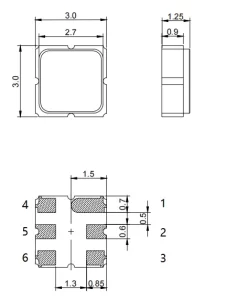

Outline Drawing (Unit: mm):
| Pin | Function |
| 2 | Input |
| 5 | Output |
| 1,3,4,6 | GND |
Test Circuit:

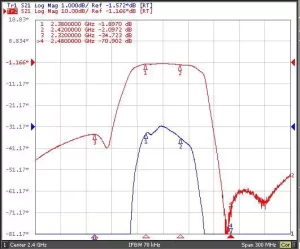

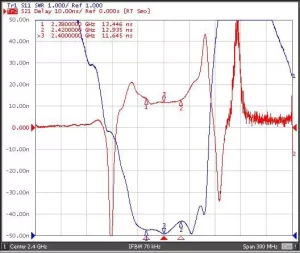

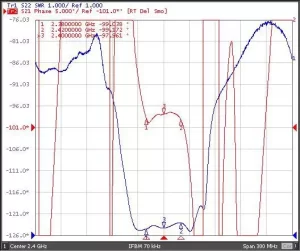

Frequency Response：
