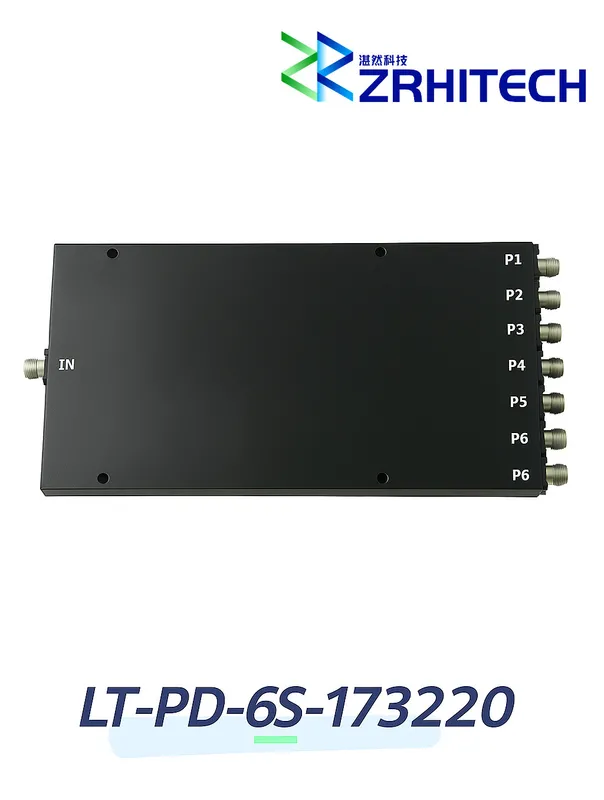

17.3 to 22 GHz 20 Watt LT-PD Series 6-Way Power Divider
Quick Detail:
- 6-Way Power Divider
- Stripline Design
- -55℃ to +85℃ operating temperature
- 17.3 to 22 GHz Frequency Range
- Max Power 20 Watt
- Insertion Loss < 1.9 dB
- Isolation > 17 dB
- CE, RoHS, REACH compliant
- 1 Year Warranty
Description:
The LT-PD-6S-173220 from ZR is a high-performance 6-way power divider operating from 17.3 to 22 GHz. This robust component can handle up to 20 Watt (CW) with maximum insertion loss of 1.9 dB and minimum isolation of 17 dB. The unit features SMA-Female connectors and complies with REACH and RoHS environmental standards.
Specifications
| Items | Specification | Conditions |
|---|---|---|
| Part Number | LT-PD-6S-173220 | |
| Frequency Range | 17.3 to 22 GHz | |
| Impedance | 50 Ohms | |
| Input VSWR | 1.6:1 Max. | |
| Output VSWR | 1.6:1 Max. | |
| Insertion Loss | 1.9 dB Max. | Excluding Nominal Splitter Loss 3.0dB |
| Isolation | 17 dB Min. | |
| Amplitude Balance | 0.8 dB Max. | |
| Phase Balance | 10 Degrees Max. | |
| Input Power | 20 kW | |
| Connectors | SMA-Female | |
| Dimension | 45.7×88.9×12.7 mm |
Note: for custom specifications, please contact us directly.
Outline Drawing:
