20.2 to 21.2 GHz Power Divider
Description

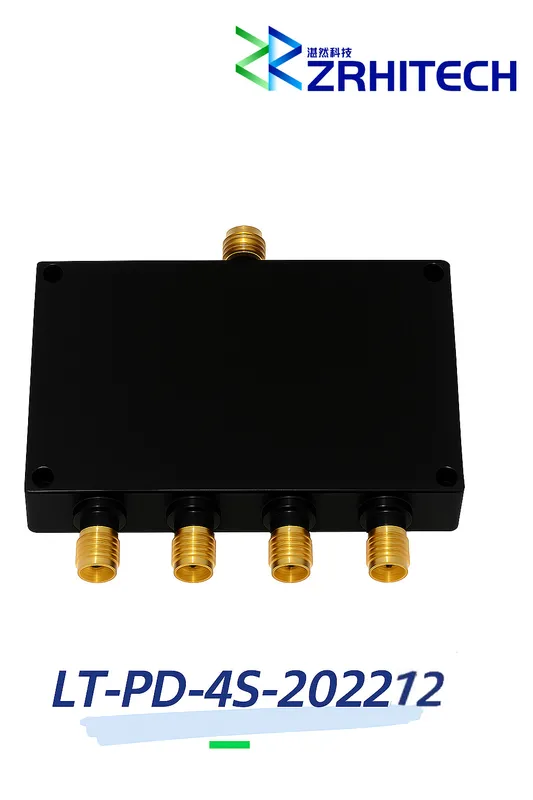

20.2 to 21.2 GHz 20 Watt LT-PD Series 4-Way Power Divider
Quick Detail:
- 4-Way Power Divider
- Stripline Design
- -55℃ to +85℃ operating temperature
- 20.2 to 21.2 GHz Frequency Range
- Max Power 20 Watt
- Insertion Loss < 1.7 dB
- Isolation > 20 dB
- CE, RoHS, REACH compliant
- 1 Year Warranty
Description:
The LT-PD-4S-202212 from ZR is a 4-way power divider that operates from 20.2 to 21.2 GHz and can handle up to 20 Watt (CW) with 1.7 dB max insertion loss and 20 dB min isolation. The package interface uses SMA-Female connectors and is REACH and RoHS compliant.
Specifications
Electrical/Optical Characteristics (Ta=25℃±3℃)
| Items | Specification | Conditions |
|---|---|---|
| Part Number | LT-PD-4S-202212 | |
| Frequency Range | 20.2 to 21.2 GHz | |
| Impedance | 50 Ohms | |
| Input VSWR | 1.5:1 Max. | |
| Output VSWR | 1.5:1 Max. | |
| Insertion Loss | 1.7 dB Max. | Excluding Nominal Splitter Loss 3.0dB |
| Isolation | 20 dB Min. | |
| Amplitude Balance | 0.5 dB Max. | |
| Phase Balance | 10 Degrees Max. | |
| Input Power | 20 kW | |
| Connectors | SMA-Female | |
| Dimension | 38.1×52.3×12.7 mm |
Note: for custom specs, please contact us directly.
