Detail Information
Place of Origin:
CHINA
Document:
Product Name:
LT-SW Series PIN Doide Switch
Application:
Wireless Communication
Material:
Aluminum
Temperature:
-40~85℃
Frequency Range:
0.5 To 20 GHz
Color:
Silver
Packaging Details:
carton packing
Highlight:
0.5 GHz PIN Diode Switch, 20 GHz PIN Diode Switch
Description

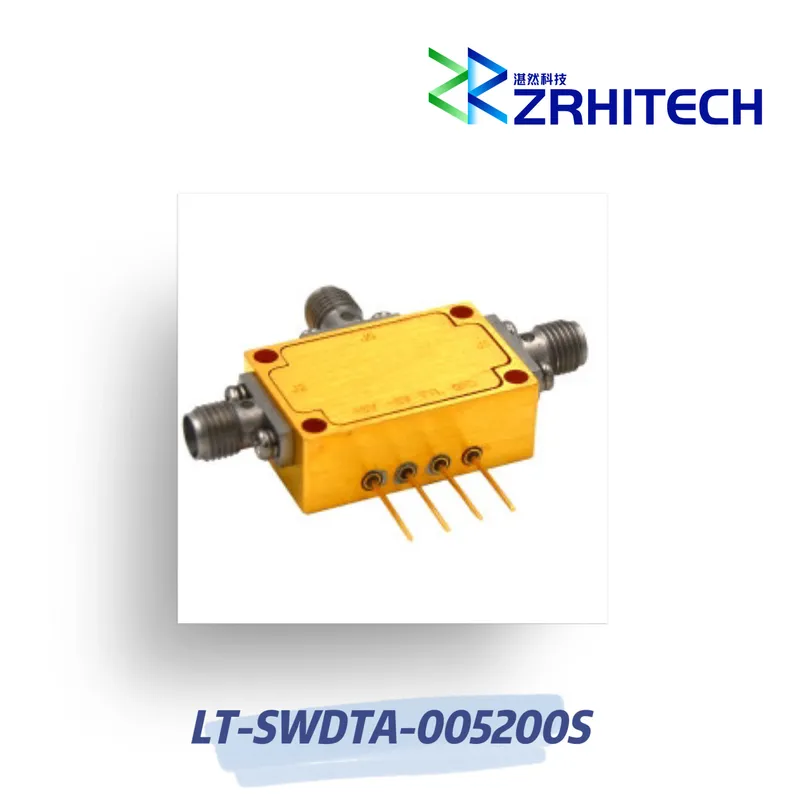

0.5 To 20 GHz SPDT Absorptive PIN Diode Switch
Product Overview
The LT-SW series PIN Diode Switch is designed for wireless communication applications, featuring an aluminum housing and operating temperature range of -40℃ to +85℃.
Key Features
- Frequency range: 0.5 to 20 GHz
- Aluminum housing for durability
- Customizable frequency options
- Fast switching time: 100ns
- Compliance with CE, RoHS, and REACH standards
- 1-year warranty included
Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-SWDTA-005200S | |
| Type | Absorptive | |
| Configuration | SPDT | |
| Frequency Range | 0.5 to 20 GHz | |
| Insertion Loss | 5 dB | |
| Isolation | 60 dB | |
| Switching Speed | 100 ns | |
| Input/Output VSWR | 2.5:1 | |
| Input Power | 0.2 W | |
| Power Supply (Bias) | +5V/80mA, -5V/50mA | |
| Dimensions | 25×25×10 mm |
Note: Custom specifications available upon request. Please contact us directly for details.
Product Diagram
