Detail Information
Place of Origin:
CHINA
Document:
Product Name:
LT-PA Series Power Amplifier
Application:
Wireless Communication
Material:
Aluminum
Temperature:
-40~85℃
Frequency Range:
1.5 To 3 GHz
Color:
Silver
Packaging Details:
carton packing
Description
1.5 to 3 GHz LT-PA Series Power Amplifier
Product Overview
The LT-PA-015030-G15P20 from ZR is a RF Amplifier with Frequency 1.5 to 3 GHz, Small Signal Gain 15 dB, Gain Flatness ±1.5 dB, Output Power 20dBm, Input Power 10 dBm. Tags: Power Amplifier. More details for LT-PA-015030-G15P20 can be seen below.
Quick Detail:
- Aluminum Housing
- Customizable Frequency
- -40℃~+85℃ Operating Temperature
- Small Signal Gain 15dB
- CE, RoHS, REACH compliant
- 1 Year Warranty
Specifications
| Items | Specification | Conditions |
|---|---|---|
| Part Number | LT-PA-015030-G15P20 | |
| Configuration | Module with Connector | |
| Frequency Range | 1.5 to 3 GHz | |
| Small Signal Gain | 15 dB | |
| Gain Flatness | ±1.5 dB | |
| Output Power | 20 dBm | |
| Input Power | 10 dBm | |
| VSWR | 2.1:1 | |
| Power Supply | +15V / 220mA | |
| Operating Temperature | -40 to +70 ℃ | |
| Dimension | 34.4*16.8*8.1 mm |
Note: for custom specs, please contact us directly.

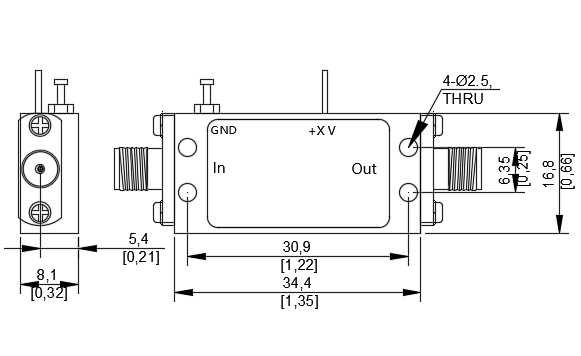

Outline Drawing (Unit: mm):
