50 Watt Power Divider
Description

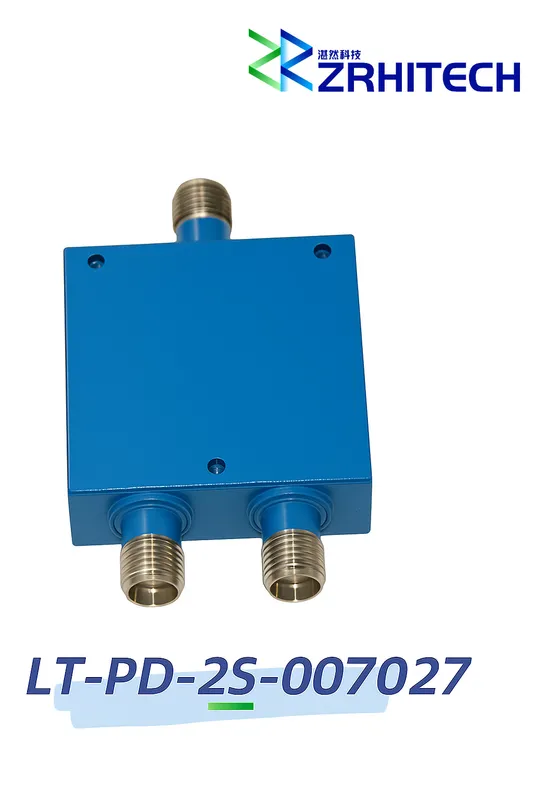

0.7 to 2.7 GHz 50 Watt LT-PD Series 2-Way Power Divider
Product Overview
The LT-PD-2S-007027 is a high-performance 2-way power divider with a frequency range of 0.7 to 2.7 GHz, designed for professional RF applications requiring precise signal distribution.
Key Features
- 2-Way power divider with stripline design
- Broad frequency range: 0.7 to 2.7 GHz
- Handles up to 50 Watt (CW) power
- Low insertion loss: < 0.3 dB
- High isolation: > 20 dB
- Wide operating temperature: -40℃ to +70℃
- N-Female connectors
- Compliance: CE, RoHS, REACH
- 1-year warranty
Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-PD-2S-007027 | |
| Frequency Range | 0.7 to 2.7 GHz | |
| Impedance | 50 Ohms | |
| Input VSWR | 1.25:1 Max. | |
| Output VSWR | 1.2:1 Max. | |
| Insertion Loss | 0.3 dB Max. | Excluding Nominal Splitter Loss 3.0dB |
| Isolation | 20 dB Min. | |
| Amplitude Balance | 0.2 dB Max. | |
| Phase Balance | 3 Degrees Max. | |
| Input Power | 50 kW | |
| Connectors | N-Female | |
| Dimensions | 61×46×20 mm |
Note: Custom specifications available upon request.

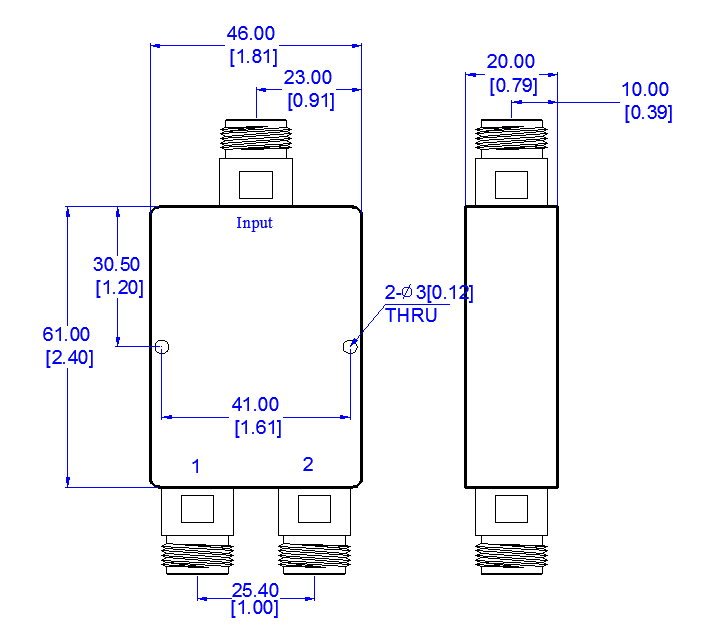

Outline Drawing
