4.0 GHz Power Divider
Description

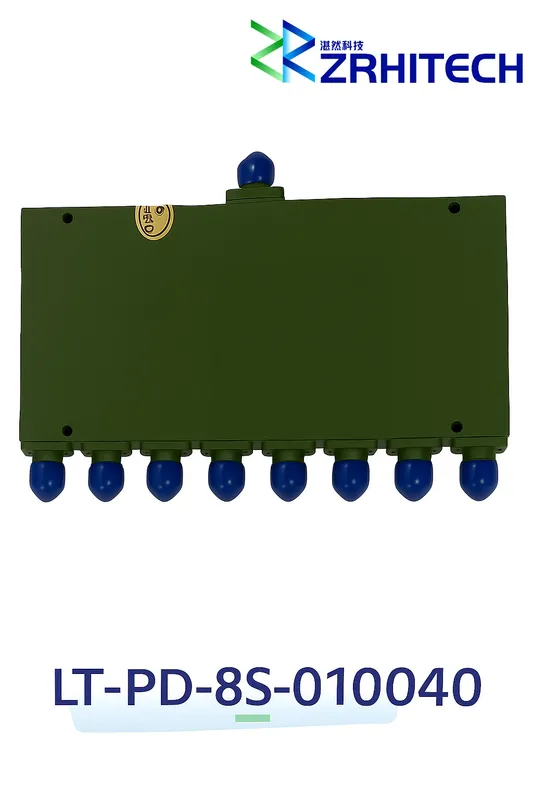

1.0 to 4.0 GHz 20 Watt LT-PD Series 8-Way Power Divider
Key Features
- 8-Way Power Divider
- Stripline Design
- -40℃ to +70℃ operating temperature
- 1.0 to 4.0 GHz Frequency Range
- Max Power 20 Watt
- Insertion Loss < 2.0 dB
- Isolation > 18 dB
- CE, RoHS, REACH compliant
- 1 Year Warranty
Product Description
The LT-PD-8S-010040 from ZR is an 8-way power divider that operates from 1.0 to 4.0 GHz and can handle up to 20 Watt (CW) with 2.0 dB max insertion loss and 18 dB min isolation. The package interface uses SMA-Female connectors and is REACH and RoHS compliant.
Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-PD-8S-010040 | |
| Frequency Range | 1.0 to 4.0 GHz | |
| Impedance | 50 Ohms | |
| Input VSWR | 1.8:1 Max. | |
| Output VSWR | 1.5:1 Max. | |
| Insertion Loss | 2.0 dB Max. | Excluding Nominal Splitter Loss 3.0dB |
| Isolation | 18 dB Min. | |
| Amplitude Balance | 0.8 dB Max. | |
| Phase Balance | 16 Degrees Max. | |
| Input Power | 20 kW | |
| Connectors | SMA-Female | |
| Dimension | 124x106x10 mm |
Note: For custom specifications, please contact us directly.
Outline Drawing
