Detail Information
Place of Origin:
CHINA
Document:
Product Name:
LT-PA Series Power Amplifier
Application:
Wireless Communication
Material:
Aluminum
Temperature:
-40~85℃
Frequency Range:
1 To 3 GHz
Color:
Silver
Packaging Details:
carton packing
Description
1 to 3 GHz 18 dBm Power Amplifier with 16dB Small Signal Gain
Product Overview
The LT-PA010030-G16P18 from ZR is a RF Amplifier with Frequency 1 to 3 GHz, Small Signal Gain 16 dB, Gain Flatness ±1.0 dB, Output Power 18dBm, Input Power 10 dBm. Tags: Power Amplifier. More details for LT-PA010030-G16P18 can be seen below.
Key Features
- Aluminum housing for durability
- Customizable frequency options
- Wide operating temperature range (-40℃ to +85℃)
- 16dB small signal gain
- CE, RoHS, REACH compliant
- 1 year warranty
Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-PA-010030-G16P18 | |
| Configuration | Module with Connector | |
| Frequency Range | 1 to 3 GHz | |
| Small Signal Gain | 16 dB | |
| Gain Flatness | ±1.0 dB | |
| Output Power | 18 dBm | |
| Input Power | 15 dBm | |
| VSWR | 2.0:1 | |
| Power Supply | +12V / 150mA | |
| Operating Temperature | -40 to +85 ℃ | |
| Dimension | 34.4*16.8*8.1 mm |
Note: For custom specifications, please contact us directly.

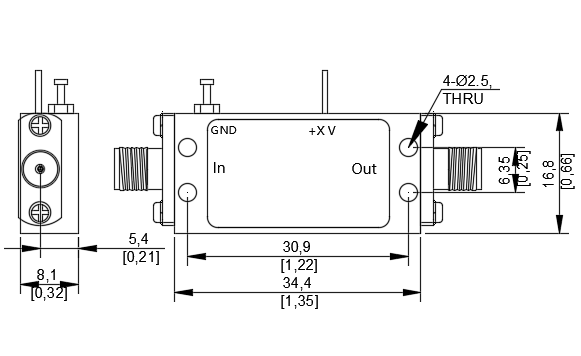

Outline Drawing
