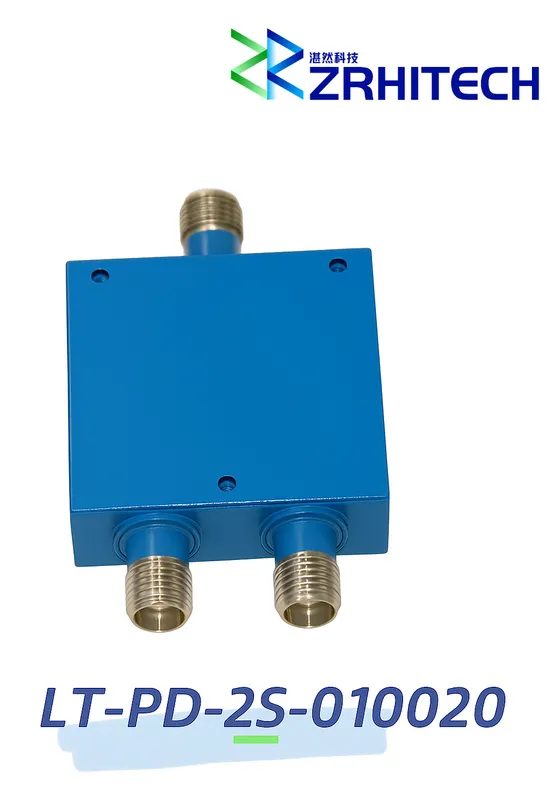

1 to 2 GHz 20 Watt LT-PD Series 2-Way Power Divider
Quick Detail:
- 2-Way Power Divider
- Stripline Design
- -40℃ to +70℃ operating temperature
- 1 to 2 GHz Frequency Range
- Max Power 20 Watt
- Insertion Loss < 0.35 dB
- Isolation > 20 dB
- CE, RoHS, REACH compliant
- 1 Year Warranty
Description:
The LT-PD-2S-010020 is a 2-way power divider that operates from 1 to 2 GHz and can handle up to 20 Watt (CW) with 0.35 dB max insertion loss and 20 dB min isolation. The package interface uses SMA-Female connectors and is REACH and RoHS compliant.
Specifications
| Items | Specification | Conditions |
|---|---|---|
| Part Number | LT-PD-2S-010020 | |
| Frequency Range | 1 to 2 GHz | |
| Impedance | 50 Ohms | |
| Input VSWR | 1.25:1 Max. | |
| Output VSWR | 1.25:1 Max. | |
| Insertion Loss | 0.35 dB Max. | Excluding Nominal Splitter Loss 3.0dB |
| Isolation | 20 dB Min. | |
| Amplitude Balance | 0.4 dB Max. | |
| Phase Balance | 4 Degrees Max. | |
| Input Power | 20 kW | |
| Connectors | SMA-Female | |
| Dimension | 28x28x10 mm |
Note: for custom specs, please contact us directly.

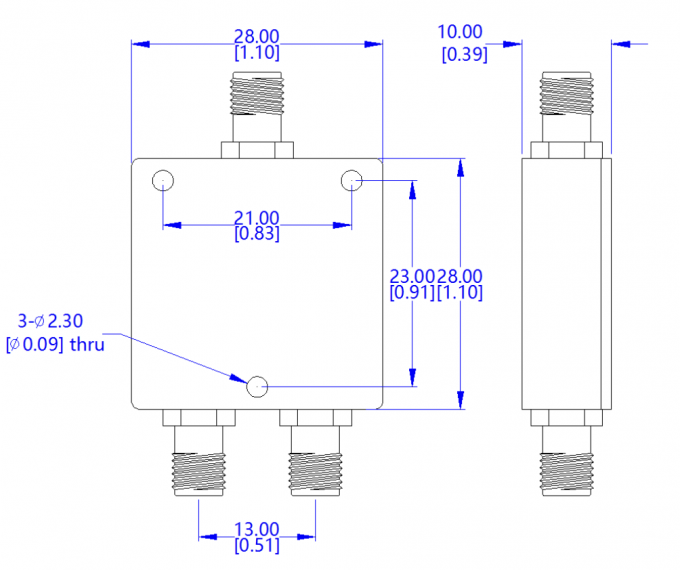

Outline Drawing:
