Detail Information
Place of Origin:
CHINA
Document:
Product Name:
LT-PA Series Power Amplifier
Application:
Wireless Communication
Material:
Aluminum
Temperature:
-40~85℃
Frequency Range:
1 To 2 GHz
Color:
Silver
Packaging Details:
carton packing
Description
1 To 2 GHz 19 dBm Power Amplifier with 49 dB Small Signal Gain
Product Overview
The LT-PA-010020-G49P19 is a high-performance RF power amplifier designed for wireless communication applications, featuring a robust aluminum housing and excellent signal gain characteristics.
Key Features
- Frequency range: 1 to 2 GHz
- Small signal gain: 49 dB
- Output power: 19 dBm
- Aluminum housing for durability
- Operating temperature: -40℃ to +85℃
- CE, RoHS, REACH compliant
- 1-year warranty
Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-PA-010020-G49P19 | |
| Configuration | Module with Connector | |
| Frequency Range | 1 to 2 GHz | |
| Small Signal Gain | 49 dB | |
| Gain Flatness | ±1.0 dB | |
| Output Power | 19 dBm | |
| Input Power | 5 dBm | |
| VSWR | 2.1:1 | |
| Power Supply | +15V / 180 mA | |
| Operating Temperature | -40 to +70 ℃ | |
| Dimensions | 35 × 35 × 16 mm |
Note: Custom specifications available upon request. Please contact us for details.

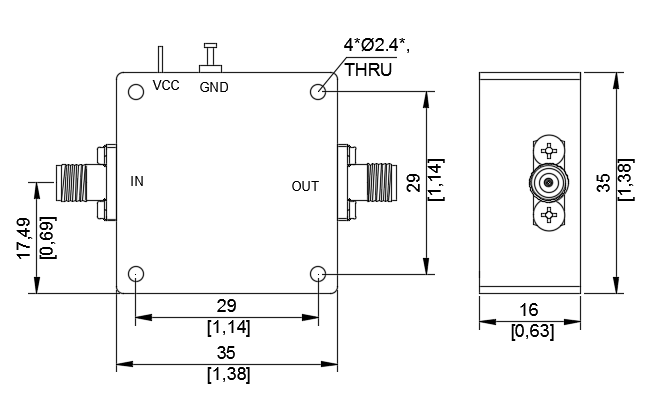

Product Diagram
