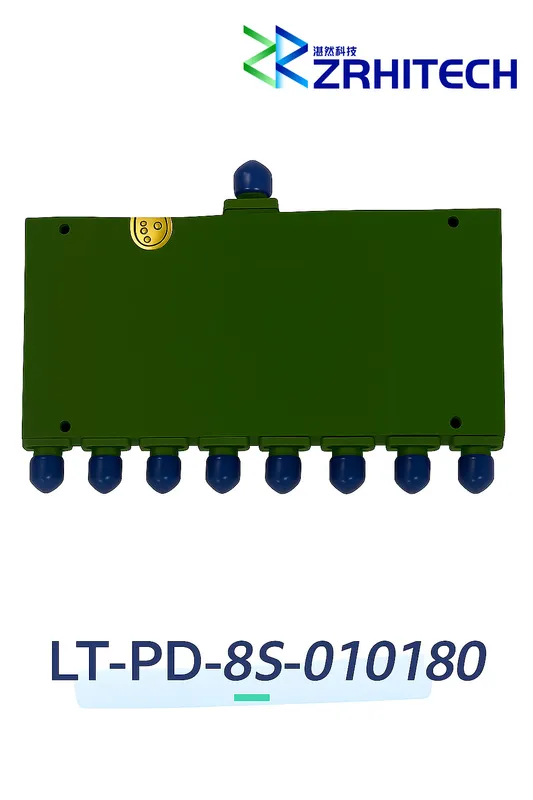

1 to 18 GHz 20 Watt LT-PD Series 8-Way Power Divider
Quick Detail:
- 8-Way Power Divider
- Stripline Design
- -55℃ to +85℃ operating temperature
- 1 to 18 GHz Frequency Range
- Max Power 20 Watt
- Insertion Loss < 5.5 dB
- Isolation > 16 dB
- CE, RoHS, REACH compliant
- 1 Year Warranty
Description:
The LT-PD-8S-010180 from ZR is an 8-way power divider that operates from 1 to 18 GHz and can handle up to 20 Watt (CW) with 5.5 dB max insertion loss and 16 dB min isolation. The package interface uses SMA-Female connectors and is REACH and RoHS compliant.
Specifications
| Items | Specification | Conditions |
|---|---|---|
| Part Number | LT-PD-8S-010180 | |
| Frequency Range | 1 to 18 GHz | |
| Impedance | 50 Ohms | |
| Input VSWR | 1.6:1 Max. | |
| Output VSWR | 1.6:1 Max. | |
| Insertion Loss | 5.5 dB Max. | Excluding Nominal Splitter Loss 3.0dB |
| Isolation | 16 dB Min. | |
| Amplitude Balance | 1.2 dB Max. | |
| Phase Balance | 12 Degrees Max. | |
| Input Power | 20 kW | |
| Connectors | SMA-Female | |
| Dimension | 110x120x12.7 mm |
Note: for custom specs, please contact us directly.

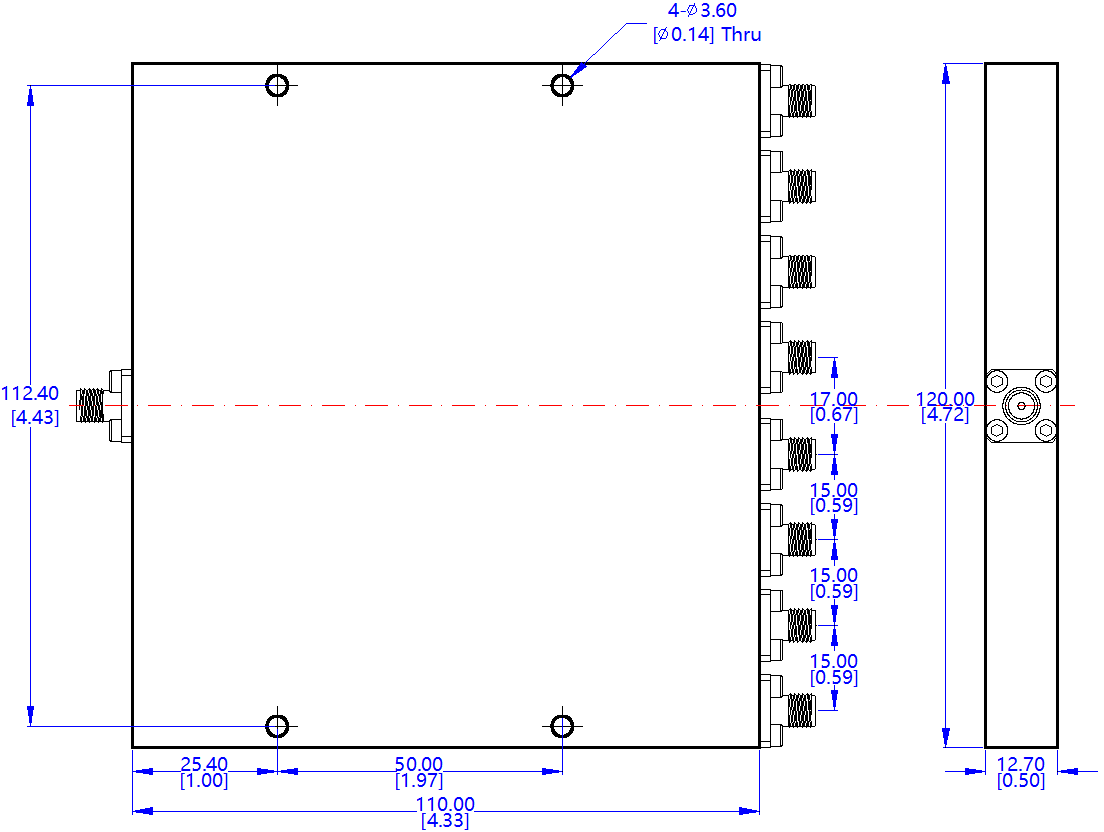

Outline Drawing:
