Detail Information
Place of Origin:
CHINA
Document:
Product Name:
LT-PA Series Power Amplifier
Application:
Wireless Communication
Material:
Aluminum
Temperature:
-40~85℃
Frequency Range:
2 To 16 GHz
Color:
Silver
Packaging Details:
carton packing
Description
1 to 15GHz LT-PA Series Power Amplifier
Product Overview
The LT-PA-010150-G45P20 from ZR is a RF Amplifier with Frequency 1 to 15 GHz, Small Signal Gain 45 dB, Gain Flatness ± 2.5 dB, Output Power 20dBm, Input Power 5 dBm. Tags: Power Amplifier. More details for LT-PA010150-G45P20 can be seen below.
Quick Detail:
- Aluminum Housing
- Customizable Frequency
- -40℃~+85℃ Operating Temperature
- Small Signal Gain 20dB
- CE, RoHS, REACH compliant
- 1 Year Warranty
Specifications
| Items | Specification | Conditions |
|---|---|---|
| Part Number | LT-PA-010150-G45P20 | |
| Configuration | Module with Connector | |
| Frequency Range | 1 to 15 GHz | |
| Small Signal Gain | 45 dB | |
| Gain Flatness | ±2.5 dB | |
| Output Power | 20 dBm | |
| Input Power | 5 dBm | |
| VSWR | 2.0:1 | |
| Power Supply | +12V / 300mA | |
| Operating Temperature | -40 to +70 ℃ | |
| Dimension | 40.7*16.8*8.1 mm |
Note: for custom specs, please contact us directly.

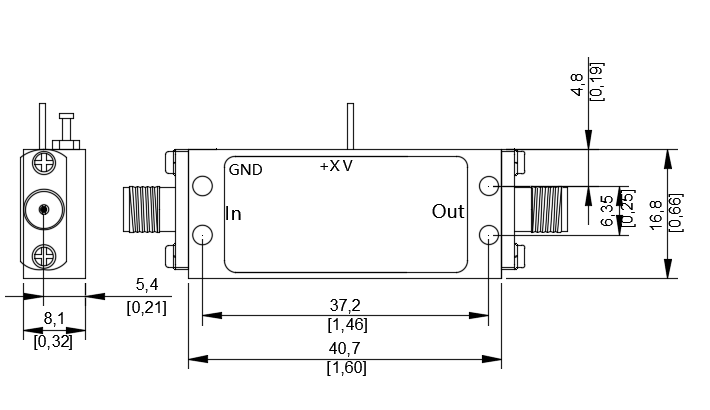

Outline Drawing (Unit: mm)
