Detail Information
Place of Origin:
CHINA
Document:
Product Name:
LT-PA Series Power Amplifier
Application:
Wireless Communication
Material:
Aluminum
Temperature:
-40~85℃
Frequency Range:
13.2 To 16.4 GHz
Color:
Silver
Packaging Details:
carton packing
Description

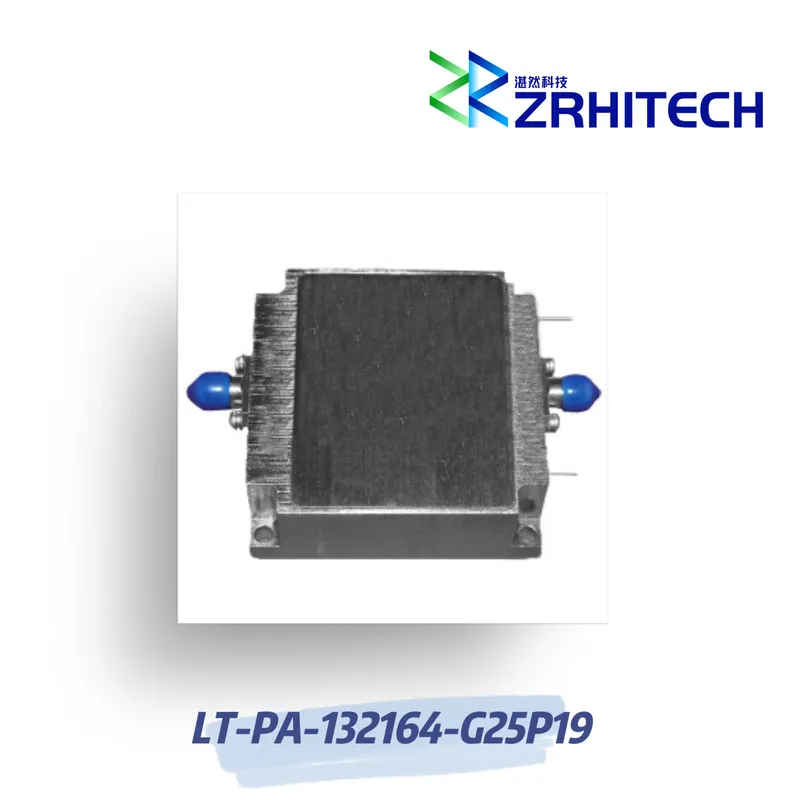

13.2 To 16.4 GHz 19dBm Power Amplifiers with 25dB Small Signal Gain
Product Overview
The LT-PA-132164-G25P19 is a high-performance RF power amplifier designed for wireless communication applications, featuring a frequency range of 13.2 to 16.4 GHz with 25dB small signal gain and 19dBm output power.
Key Features
- Durable aluminum housing for robust protection
- Customizable frequency options available
- Wide operating temperature range: -40℃ to +85℃
- Consistent 25dB small signal gain
- Compliance with CE, RoHS, and REACH standards
- Includes 1-year warranty
Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-PA-132164-G25P19 | |
| Configuration | Module with Connector | |
| Frequency Range | 13.2 to 16.4 GHz | |
| Small Signal Gain | 25 dB | |
| Gain Flatness | ±2.0 dB | |
| Output Power | 19 dBm | |
| Input Power | 5 dBm | |
| VSWR | 2.0:1 | |
| Power Supply | +12V / 450 mA | |
| Operating Temperature | -40 to +70 ℃ | |
| Dimension | 35×25×16 mm |

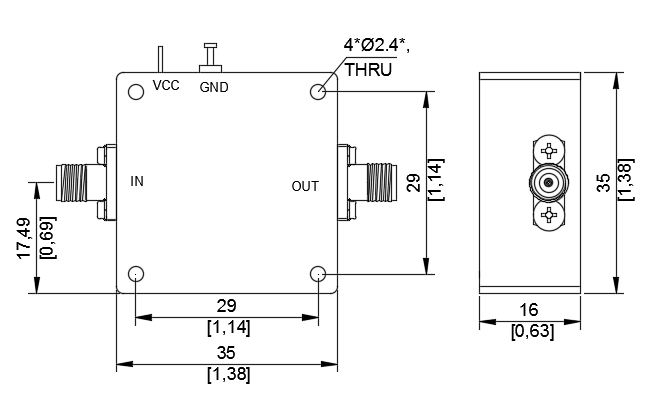

Product Dimensions
