Description

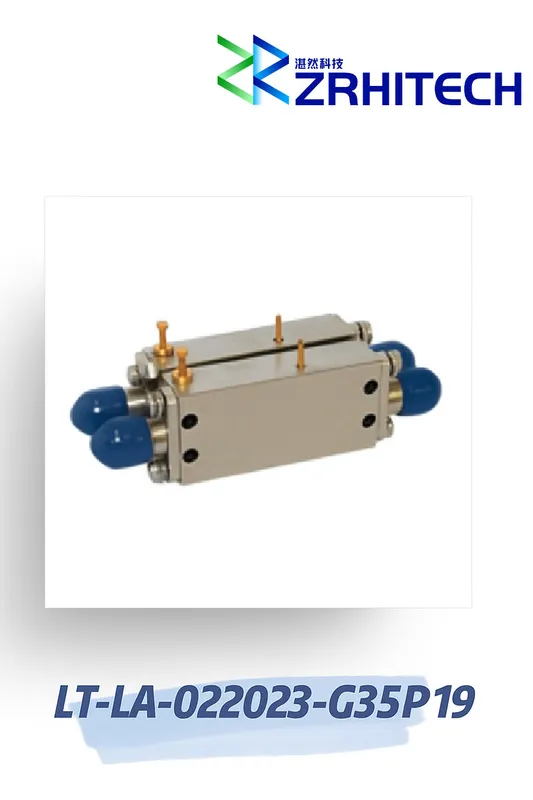

2.2 to 2.3 GHz 19dBm Low Noise Amplifier
Product Overview
The LT-LA-022023-G35P19 from ZR is a RF Amplifier with Frequency 2.2 to 2.3 GHz, Small Signal Gain 35 dB, Gain Flatness ±2.0 dB, Output Power 19dBm, Input Power 10 dBm. Tags: Power Amplifier.
Quick Detail:
- Aluminum Housing
- Customizable Frequency
- -10℃~+50℃ Operating Temperature
- Small Signal Gain 35dB
- CE, RoHS, REACH compliant
- 1 Year Warranty
Specifications
| Items | Specification | Conditions |
|---|---|---|
| Part Number | LT-LA-022023-G35P19 | |
| Configuration | Module with Connector | |
| Frequency Range | 2.2 to 2.3 GHz | |
| Small Signal Gain | 35 dB | |
| Gain Flatness | ±2.0 dB | |
| Output Power | 19 dBm | |
| Input Power | 10 dBm | |
| VSWR | 1.5:1 | |
| Power Supply | +12V / TBD mA | |
| Operating Temperature | -10 to +50 ℃ | |
| Dimension | 60x41x30 mm |
Note: for custom specs, please contact us directly.

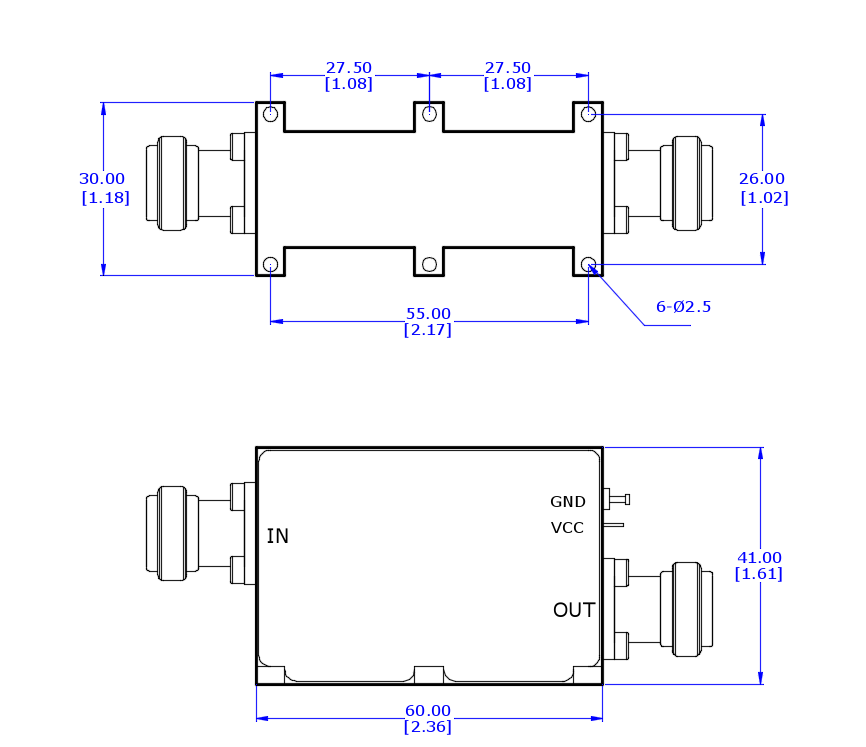

Outline Drawing (Unit: mm):
