Detail Information
Place of Origin:
CHINA
Document:
Product Name:
LT-PA Series Power Amplifier
Application:
Wireless Communication
Material:
Aluminum
Temperature:
-40~85℃
Frequency Range:
18 To 40 GHz
Color:
Silver
Packaging Details:
carton packing
Description
18 to 40 GHz Low Noise Amplifiers with 15 dB Small Signal Gain
Product Overview
The LT-PA180400-G15P12 from ZR is a RF Amplifier with Frequency 18 to 40 GHz, Small Signal Gain 15 dB, Gain Flatness ± 4.5 dB, Output Power 12dBm, Input Power 10 dBm. Tags: Power Amplifier. More details for LT-PA180400-G15P12 can be seen below.
Key Features
- Customizable frequency options available
- 15dB small signal gain
- ±4.5 dB gain flatness
- 12dBm output power
- Compliance with CE, RoHS, and REACH standards
- 1-year manufacturer warranty
Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-PA-180400-G15P12 | |
| Configuration | Module with Connector | |
| Frequency Range | 18 to 40 GHz | |
| Small Signal Gain | 15 dB | |
| Gain Flatness | ±4.5 dB | |
| Output Power | 12 dBm | |
| Input Power | 10 dBm | |
| VSWR | 2.0:1 | |
| Power Supply | +12V / 500mA | |
| Operating Temperature | -40 to +70 ℃ | |
| Dimensions | 34.4 × 16.8 × 8.1 mm |
Note: Custom specifications available upon request. Please contact us for tailored solutions.

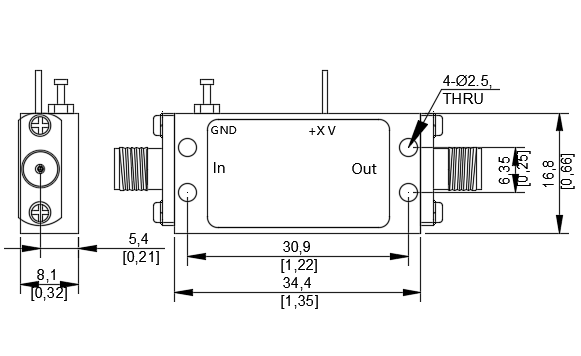

Product Diagram
