LT-SW Series PIN Doide Switch
Application:
Wireless Communication
Material:
Aluminum
Temperature:
-40~85℃
Frequency Range:
0.5 To 18 GHz
Color:
Silver
Packaging Details:
carton packing
Highlight:
18 GHz PIN Diode Switch
Description
0.5 To 18 GHz SPDT Absorptive PIN Diode Switch
Product Attributes
| Product name | LT-SW series PIN Diode Switch |
|---|---|
| Application | Wireless Communication |
| Material | Aluminum |
| Temperature | -40~85℃ |
| Frequency range | 0.5 to 18 GHz |
| Color | Silver |
Product Description
0.5 to 18 GHz LT-SW Series PIN Diode Switch
Key Features
- Aluminum Housing
- Customizable Frequency
- -40℃~+85℃ Operating Temperature
- Fast Switching Time 100ns
- CE, RoHS, REACH compliant
- 1 Year Warranty

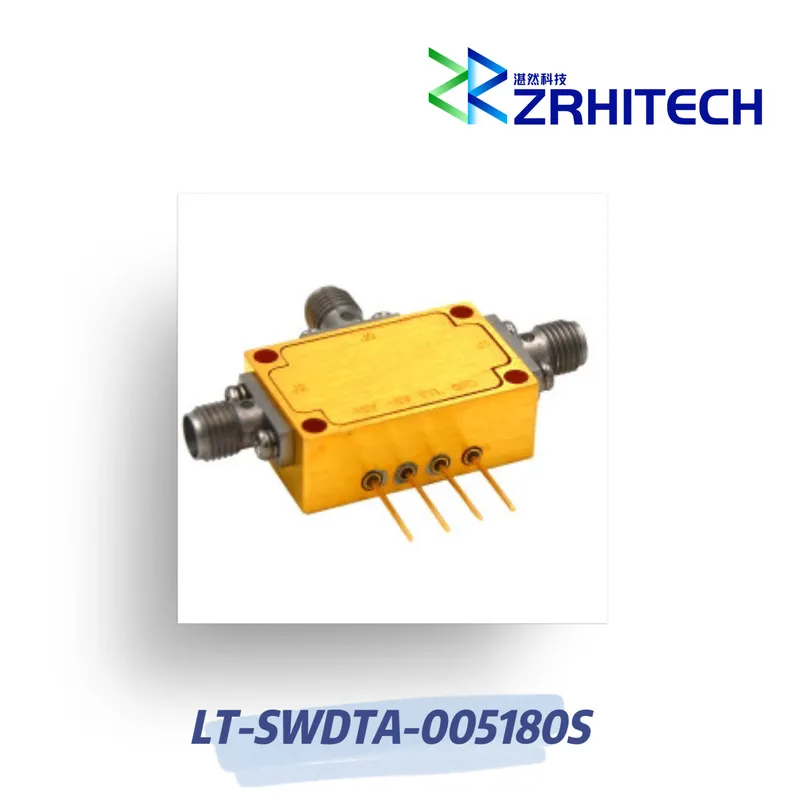

The LT-SWDTA-005180S from ZR is an Absorptive PIN Diode Switch with frequency range of 0.5 to 18 GHz, isolation of 80 dB, and switching speed of 100ns. Power supply requires bias of +5V/100mA and -5V/50mA.
Specifications
Electrical/Optical Characteristics (Ta=25℃ ±3℃)
| Items | Specification | Conditions |
|---|---|---|
| Part Number | LT-SWDTA-005180S | |
| Type | Absorptive | |
| Configuration | SPDT | |
| Frequency Range | 0.5 to 18 GHz | |
| Insertion Loss | 3.5 dB | |
| Isolation | 80 dB | |
| Switching Speed | 100 ns | |
| Control | PIN | |
| Input/Output VSWR | 2:1 | |
| Input Power | 1.0 W | |
| Power Supply(Bias) | +5V / 100mA -5V / 50mA |
|
| Dimension | 26*18*13.5mm |
Note: for custom specs, please contact us directly.
Outline Drawing
