Detail Information
Highlight:
40 GHz Power Divider, 18.0 GHz Power Divider, 18.0 to 40 GHz Power Divider
Description

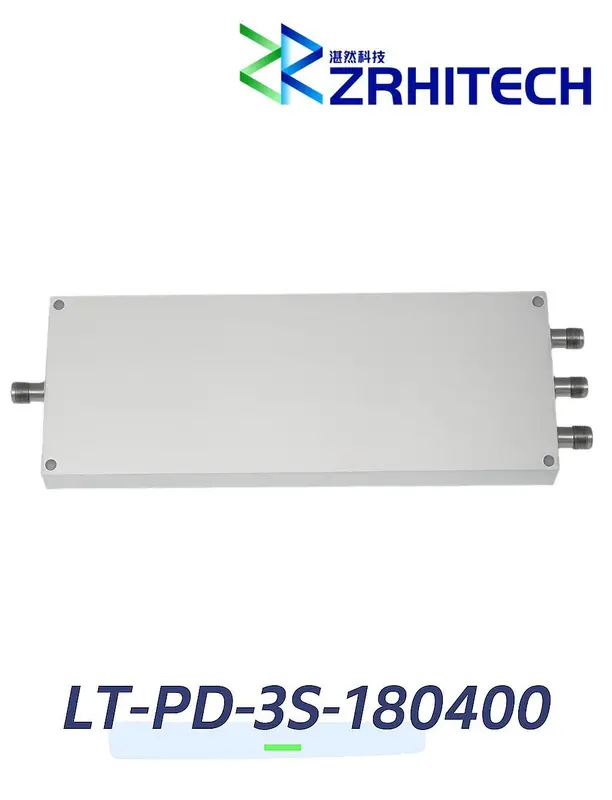

18.0 to 40 GHz 20 Watt LT-PD Series 3-Way Power Divider
Key Features
- 3-Way Power Divider with Stripline Design
- Wide operating temperature range: -55℃ to +85℃
- Broad frequency range: 18.0 to 40 GHz
- High power handling: Max 20 Watt
- Low insertion loss: < 2.1 dB
- Excellent isolation: > 16 dB
- Compliant with CE, RoHS, and REACH standards
- Includes 1 Year Warranty
Product Description
The LT-PD-3S-180400 is a high-performance 3-way power divider operating from 18.0 to 40 GHz. Capable of handling up to 20 Watt (CW), it features 2.1 dB max insertion loss and 16 dB min isolation. The unit comes with 2.92mm-Female connectors and is fully compliant with REACH and RoHS environmental standards.
Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-PD-3S-180400 | |
| Frequency Range | 18.0 to 40 GHz | |
| Impedance | 50 Ohms | |
| Input VSWR | 1.8:1 Max. | |
| Output VSWR | 1.8:1 Max. | |
| Insertion Loss | 2.1 dB Max. | Excluding Nominal Splitter Loss 3.0dB |
| Isolation | 16 dB Min. | |
| Amplitude Balance | 1.4 dB Max. | |
| Phase Balance | 16 Degrees Max. | |
| Input Power | 20 kW | |
| Connectors | 2.92mm-Female | |
| Dimensions | 38.1×43.2×12.7 mm |
Note: For custom specifications, please contact us directly.
Outline Drawing
