18 GHz Power Divider
Description
0.5 to 18 GHz 20 Watt LT-PD Series 3-Way Power Divider
Product Overview
The LT-PD-3S-005180 is a high-performance 3-way power divider with an operational frequency range of 0.5 to 18 GHz, capable of handling up to 20 Watts continuous power.
Key Features
- 3-Way power division with stripline design
- Broad frequency range: 0.5 to 18 GHz
- High power handling: 20 Watts maximum
- Low insertion loss: < 2.1 dB
- Excellent isolation: > 18 dB
- Wide operating temperature: -55℃ to +85℃
- Compliance with CE, RoHS, and REACH standards
- Includes 1-year warranty
Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-PD-3S-005180 | |
| Frequency Range | 0.5 to 18 GHz | |
| Impedance | 50 Ohms | |
| Input VSWR | 1.45:1 Max. | |
| Output VSWR | 1.45:1 Max. | |
| Insertion Loss | 2.1 dB Max. | Excluding Nominal Splitter Loss 3.0dB |
| Isolation | 18 dB Min. | |
| Amplitude Balance | 1.0 dB Max. | |
| Phase Balance | 10 Degrees Max. | |
| Input Power | 20 kW | |
| Connectors | SMA-Female | |
| Dimensions | 254 × 40.6 × 12.7 mm |
Note: Custom specifications available upon request.

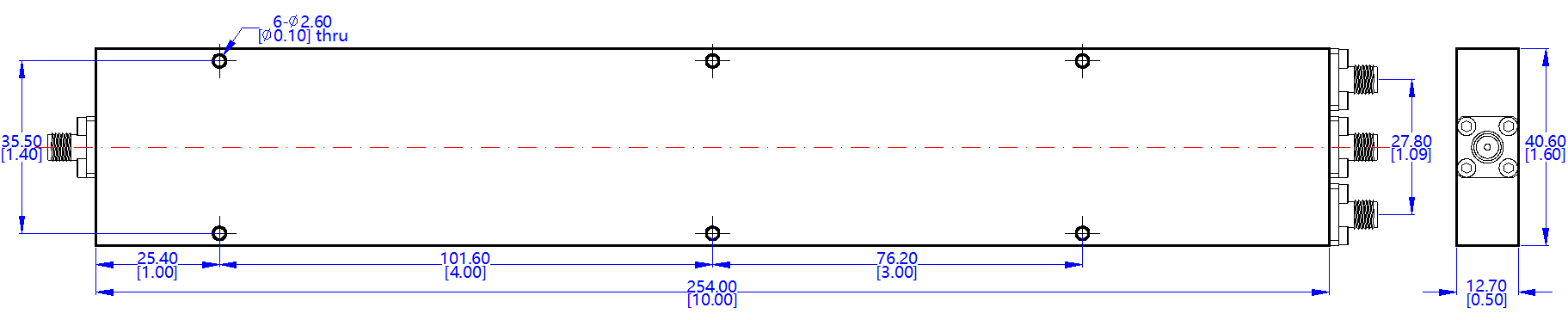

Outline Drawing
