Detail Information
Place of Origin:
CHINA
Document:
Product Name:
LT-PA Series Power Amplifier
Application:
Wireless Communication
Material:
Aluminum
Temperature Range:
-40~85℃
Output Power Capability:
17dBm
Signal Gain:
16dB
Packaging Details:
carton packing
Description
8.5-9GHz LT-PA Series Precision Power Amplifier
Product Overview
The ZR LT-PA-085090-G16P17 represents a high-performance RF power amplifier specifically engineered for precision applications in the 8.5-9GHz frequency band. This unit delivers 16dB gain with exceptional ±1.0dB flatness, producing 17dBm output power from just 5dBm input.
Key Features
- Narrowband High-Frequency Operation (8.5-9GHz)
- 16dB Signal Gain with ±1.0dB Flatness
- 17dBm Output Power Capability
- Military-Grade Aluminum Chassis
- Extended Temperature Range (-40°C to +85°C)
- Custom Frequency Tuning Available
- Full Compliance with CE/RoHS/REACH
- 12-Month Quality Warranty
Specifications
| Items | Specification | Conditions |
|---|---|---|
| Part Number | LT-PA-085090-G16P17 | |
| Configuration | Module with Connector | |
| Frequency Range | 8.5 to 9 GHz | |
| Small Signal Gain | 16 dB | |
| Gain Flatness | ±1.0 dB | |
| Output Power | 17 dBm | |
| Input Power | 5 dBm | |
| VSWR | 1.7:1 | |
| Power Supply | +5V / 200 mA | |
| Operating Temperature | -40 to +70 ℃ | |

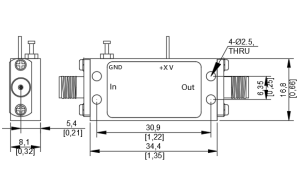

| Dimension | 34.4*16.8*8.1 mm |
Note: for custom specs, please contact us directly.
