Description

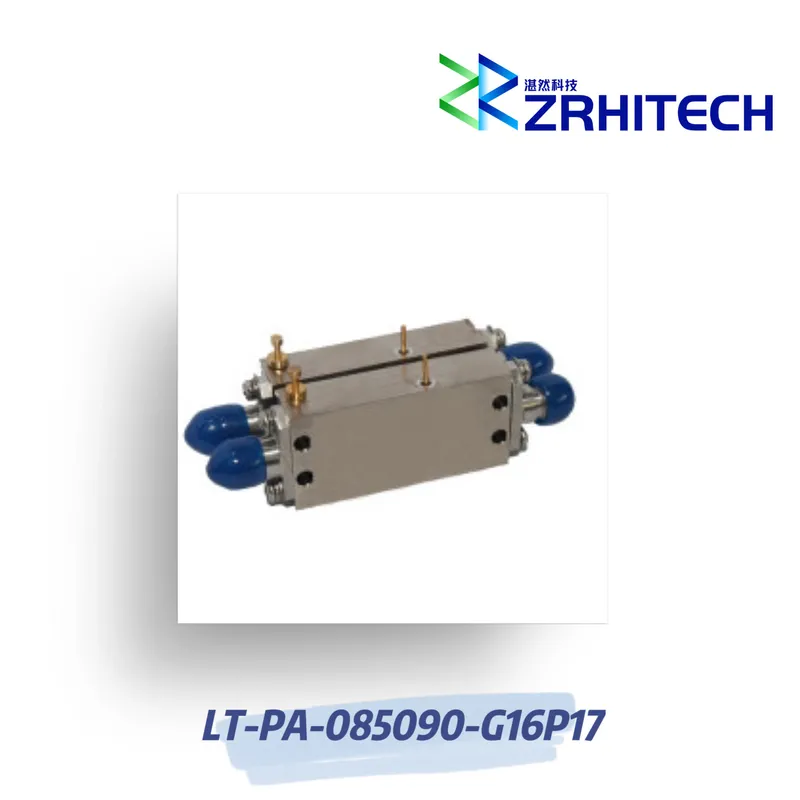

8.5-9GHz LT-PA Series High-Gain Power Amplifier
Product Overview
The ZR LT-PA-085090-G25P15 is a high-performance RF power amplifier delivering 55dB exceptional gain with ±1.0dB outstanding flatness across the 8.5-9GHz X-band frequency range. This precision amplifier provides 15dBm output power from just 5dBm input, making it ideal for sensitive radar and satellite communication systems.
Key Features
- X-Band Precision Operation (8.5-9GHz)
- 55dB High Signal Gain with ±1.0dB Flatness
- 15dBm Output Power
- Military-Grade Aluminum Housing
- Extended Temperature Range (-40 °C to +85°C)
- Frequency Customization Available
- CE/RoHS/REACH Compliant
- 12-Month Manufacturer Warranty
Specifications
| Items | Specification | Conditions |
|---|---|---|
| Part Number | LT-PA-085090-G25P15 | |
| Configuration | Module with Connector | |
| Frequency Range | 8.5 to 9 GHz | |
| Small Signal Gain | 25 dB | |
| Gain Flatness | ±1.0 dB | |
| Output Power | 15 dBm | |
| Input Power | 5 dBm | |
| VSWR | 1.9:1 | |
| Power Supply | +5V / 150mA | |
| Operating Temperature | -40 to +70 ℃ | |
| Dimension | 34.4*16.8*8.1 mm |
Note: for custom specs, please contact us directly.

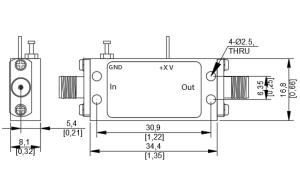

Outline Drawing (Unit: mm):
