LT-SW Series PIN Doide Switch
Application:
Wireless Communication
Material:
Aluminum
Temperature:
-40~85℃
Frequency Range:
15.5 To 16.5 GHz
Color:
Silver
Packaging Details:
carton packing
Highlight:
pin diode rf switch design, pin diode rf switch, pin diode rf switch high power
Description

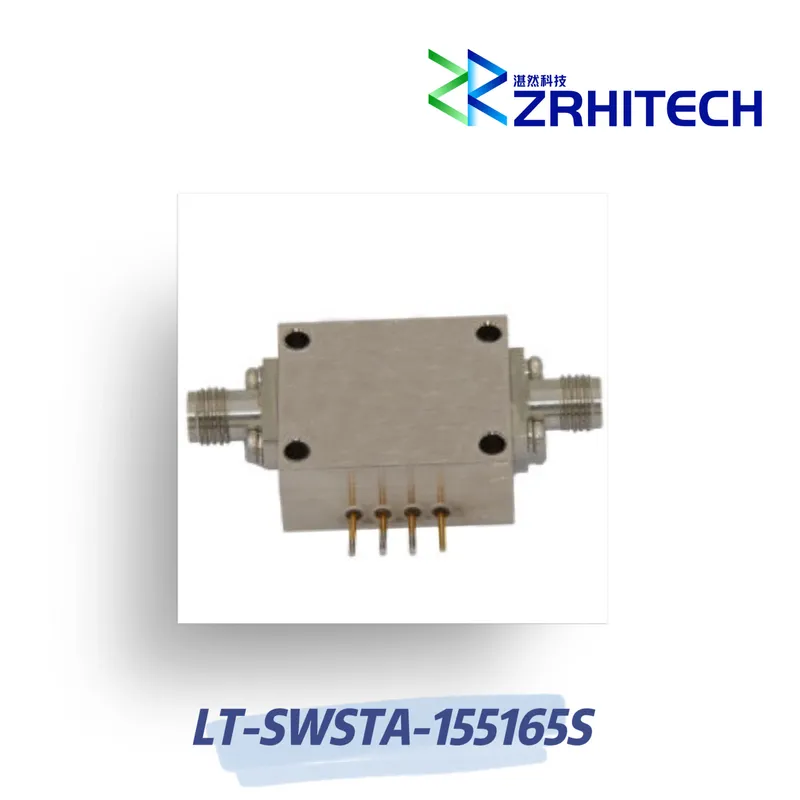

15.5 To 16.5 GHz SPST Absorptive PIN Diode Switch
Product Overview
The LT-SWSTA-155165S is a high-performance absorptive PIN diode switch designed for wireless communication applications, featuring a frequency range of 15.5 to 16.5 GHz with excellent isolation characteristics.
Key Features
- Aluminum housing for durability
- Customizable frequency options available
- Wide operating temperature range: -40℃ to +85℃
- Fast switching time of 100ns
- Compliant with CE, RoHS, and REACH standards
- Includes 1-year warranty
Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-SWSTA-155165S | |
| Type | Absorptive | |
| Configuration | SPST | |
| Frequency Range | 15.5 to 16.5 GHz | |
| Insertion Loss | 4 dB | |
| Isolation | 85 dB | |
| Switching Speed | 100 ns | |
| Control | TTL | |
| Input/Output VSWR | 1.8:1 | |
| Input Power | 0.2 W | |
| Power Supply (Bias) | +5V / 80mA -12V / 80mA |
|
| Dimensions | 24 × 24 × 9.5 mm |
Note: Custom specifications are available upon request. Please contact us directly for tailored solutions.
Outline Drawing
