Detail Information
Place of Origin:
CHINA
Document:
Product Name:
LT-PA Series Power Amplifier
Application:
Wireless Communication
Material:
Aluminum
Temperature:
-40~85℃
Frequency Range:
0.5 To 18 GHz
Color:
Silver
Packaging Details:
carton packing
Description

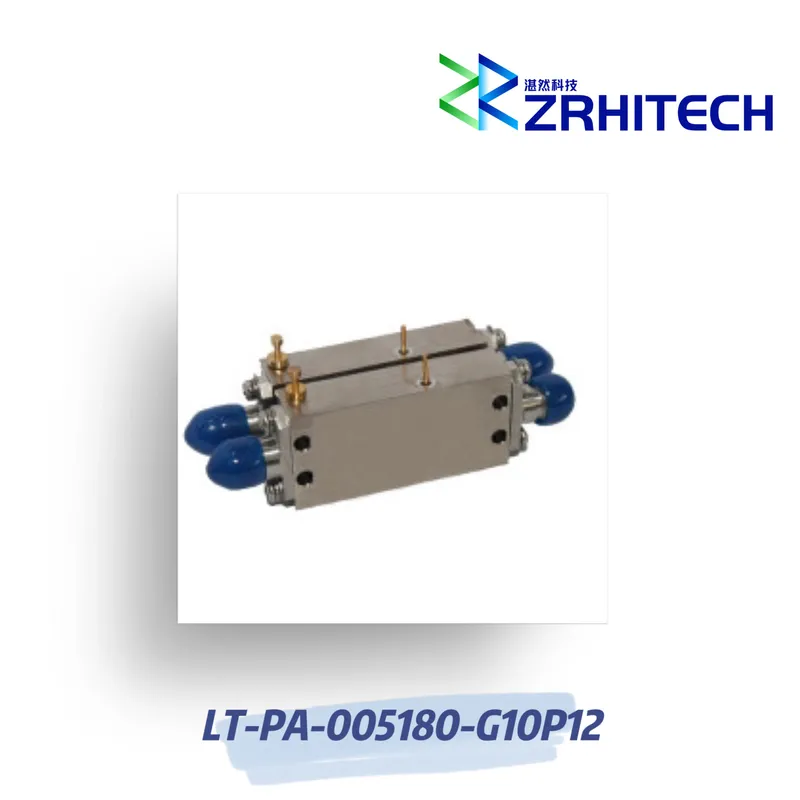

0.5 to 18 GHz LT-PA Series Power Amplifier
Product Overview
The LT-PA-005180-G10P12 from ZR is a RF Amplifier with Frequency 0.5 to 18 GHz, Small Signal Gain 10 dB, Gain Flatness ±2.0 dB, Output Power 12dBm, Input Power 10 dBm. Tags: Power Amplifier. More details for LT-PA-005180-G10P12 can be seen below.
Quick Detail:
- Aluminum Housing
- Customizable Frequency
- -40℃~+85℃ Operating Temperature
- Small Signal Gain 10dB
- CE, RoHS, REACH compliant
- 1 Year Warranty
Specifications
| Items | Specification | Conditions |
|---|---|---|
| Part Number | LT-PA-005180-G10P12 | |
| Configuration | Module with Connector | |
| Frequency Range | 0.5 to 18 GHz | |
| Small Signal Gain | 10 dB | |
| Gain Flatness | ±2.0 dB | |
| Output Power | 12 dBm | |
| Input Power | 10 dBm | |
| VSWR | 2.0:1 | |
| Power Supply | +12V / 150 mA | |
| Operating Temperature | -55 to +85 ℃ | |
| Dimension | 34.4*16.8*8.1 mm |
Note: for custom specs, please contact us directly.

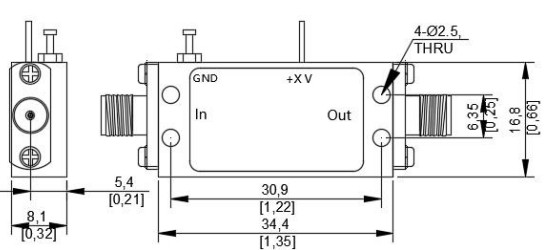

Outline Drawing (Unit: mm)
