Three-stage Bell Temperature Crystal Oscillator, Optional Three-state Control Function, High Precision, Low Phase Noise, There Are Anti-overload Products For Choice, Anti-overload > 30000g
Product Name:
LT-CR Series Temperature-compensated Crystal Oscillator
Application:
Satellite Communication, Military Communication Equipment, Base Station, Test And Measurement Equipment
Material:
Aluminum
Temperature:
±0.05ppm ~±0.5ppm
Frequency Range:
10MHz~52MHz
Voltage:
-0.5V/6V
Color:
Silver
Packaging Details:
carton packing
Description

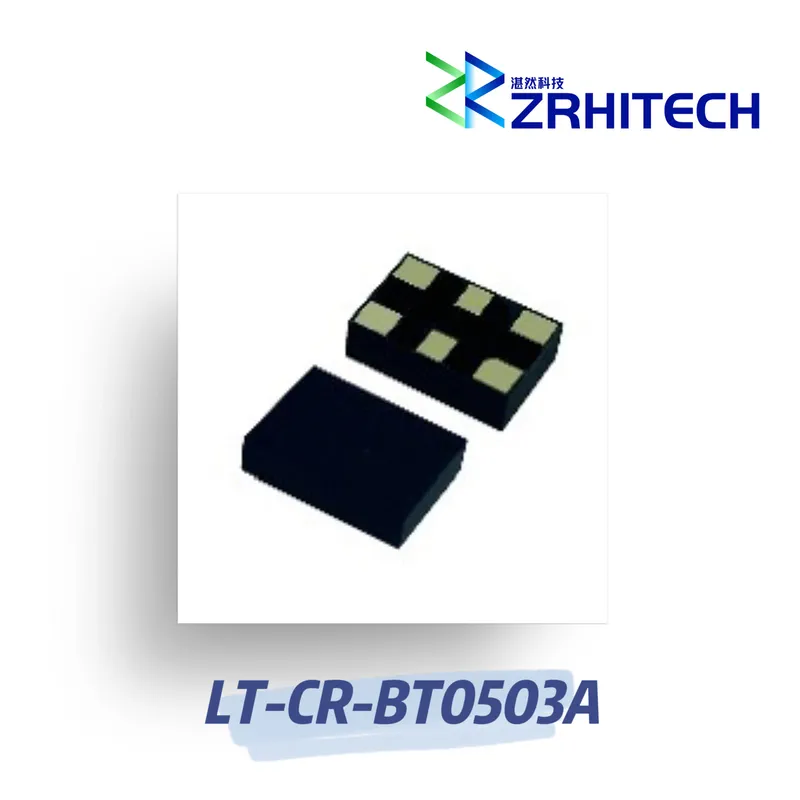

0MHz to 52MHz 5.0X3.2mm, Analog Circuit, High Stable, Low Phase Noise TCXO
Product Overview
The LT-CR-BT0503A is the newest addition to ZR’s line of TCXOs. The standard part offers an ultra-tight stability of ±0.05ppm to ±0.5ppm over -40ºC to +85ºC across a supply voltage range of -0.5V/6V. The bt0503a uses a high refresh rate, or frequency calibration rate, to maintain a linear frequency output during temperature compensation. The 5.0 mm x 3.2 mm x 1.2 mm ceramic package and options for 1,000- or 3,000-piece reels make these components ideal for satellite communication, military communication equipment, base station, test and measurement equipment.
Quick Detail:
- Aluminum housing
- -0.5/6V VDD options
- -40℃~85℃ operating temperature
- Small package
- High precision
- Low phase noise
- Optional three-state control function
- Anti-overload > 30000g
- CE, RoHS, REACH compliant
- 1 Year Warranty
Specifications
Electrical / Optical Characteristics (Ta=25℃± 3℃)
| Items | Specification | Conditions |
|---|---|---|
| Part Number | LT-CR-BT0503A | |
| Frequency Range | 10MHz~52MHz | |
| Operating Voltage | -0.5V / 6V | |
| Operating current | / | |
| Working temperature range | -40℃~+85℃ | |
| Frequency Stability vs. Temperature | ±0.05ppm ~±0.5ppm | -40℃~+85℃ |
| Initial accuracy of reference temperature | ±0.5ppm | At shipment, nominal EFC, +25℃ |
| Output Waveform | HCMOS | |
| Output Load | 50Ω | |
| Output power | / | |
| Harmonic wave | / | |
| Stray | / | |
| Phase noise(typical) | <-150dBc@10MHz <-145dBc@16MHz~40MHz <-140dBc@50MHz | |
| Acceleration sensitivity | / | |
| Dimension | 5.0×3.2×1.2mm |
Note: For specifications beyond the above table, please contact us for customization.
Outline Drawing (Unit: mm):
