10 to 26.5 GHz Power Divider
Description
10 to 26.5 GHz 20 Watt LT-PD Series 4-Way Power Divider
Quick Detail:
- 4-Way Power Divider
- Stripline Design
- -55℃ to +85℃ operating temperature
- 10 to 26.5 GHz Frequency Range
- Max Power 20 Watt
- Insertion Loss < 1.9 dB
- Isolation > 18 dB
- CE, RoHS, REACH compliant
- 1 Year Warranty
Description:
The LT-PD-4S-100265 from ZR is a high-performance 4-way power divider operating from 10 to 26.5 GHz. Capable of handling up to 20 Watt (CW) with maximum insertion loss of 1.9 dB and minimum isolation of 18 dB. The unit features SMA-Female connectors and complies with REACH and RoHS standards.
Specifications
| Items | Specification | Conditions |
|---|---|---|
| Part Number | LT-PD-4S-100265 | |
| Frequency Range | 10 to 26.5 GHz | |
| Impedance | 50 Ohms | |
| Input VSWR | 1.6:1 Max. | |
| Output VSWR | 1.6:1 Max. | |
| Insertion Loss | 1.9 dB Max. | Excluding Nominal Splitter Loss 3.0dB |
| Isolation | 18 dB Min. | |
| Amplitude Balance | 0.6 dB Max. | |
| Phase Balance | 8 Degrees Max. | |
| Input Power | 20 kW | |
| Connectors | SMA-Female | |
| Dimension | 38.1×52.3×12.7 mm |
Note: for custom specs, please contact us directly.

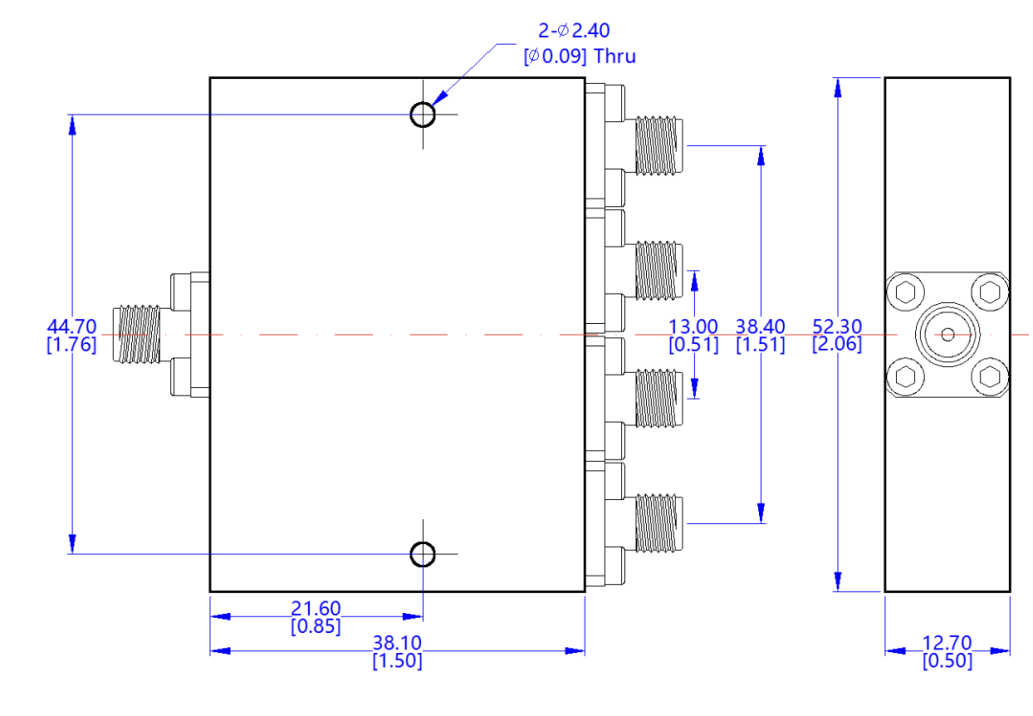

Outline Drawing:
