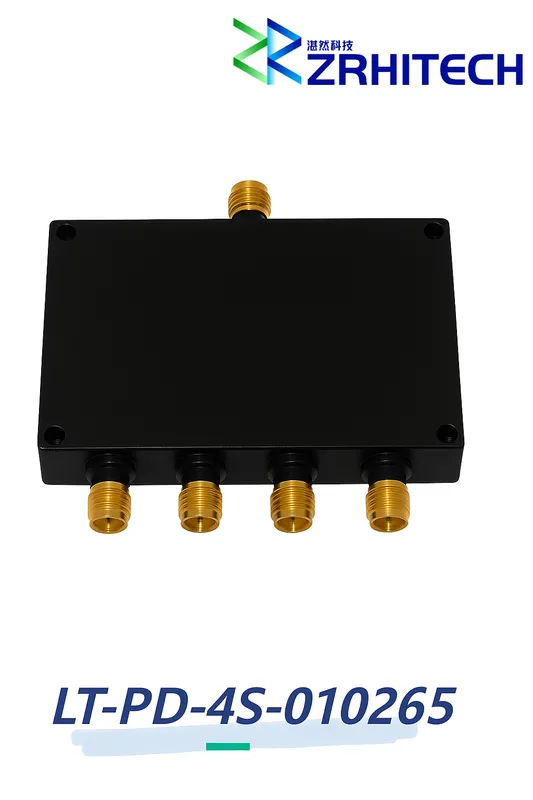

1 to 26.5 GHz 20 Watt LT-PD Series 4-Way Power Divider
Product Overview
The LT-PD-4S-010265 is a high-performance 4-way power divider with an operational frequency range of 1 to 26.5 GHz, capable of handling up to 20 Watt continuous power.
Key Features
- 4-Way power division with stripline design
- Broad frequency range: 1 to 26.5 GHz
- High power handling: 20 Watt maximum
- Low insertion loss: < 3.2 dB
- Excellent isolation: > 16 dB
- Extended operating temperature: -55℃ to +85℃
- Compliance with CE, RoHS, and REACH standards
- Includes 1-year warranty
Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-PD-4S-010265 | |
| Frequency Range | 1 to 26.5 GHz | |
| Impedance | 50 Ohms | |
| Input VSWR | 1.6:1 Max. | |
| Output VSWR | 1.6:1 Max. | |
| Insertion Loss | 3.2 dB Max. | Excluding Nominal Splitter Loss 3.0dB |
| Isolation | 16 dB Min. | |
| Amplitude Balance | 1.0 dB Max. | |
| Phase Balance | 12 Degrees Max. | |
| Input Power | 20 kW | |
| Connectors | SMA-Female | |
| Dimensions | 110.5×73.7×12.7 mm |
Note: For custom specifications, please contact us directly.
